• Surface mount fuse in a small
footprint
|
• High current rating 15A-30A
|
• Higher voltage rating up to
100VDC and 250VAC
|
• High melting i2t
|
• Enhanced thermal cycling
endurance
|
• Operating temperature range
from -55°C to 125°C
|
• RoHS Compliant and
Halogen-Free
|
• Recognized to UL/CSA/NMX
248-1 and UL/CSA/NMX
248-14
|
• Conforms to EN/IEC 60127-1
and EN/IEC 60127-7
|
|
| CATALOG |
0463025.ER COUNTRY OF ORIGIN
|
0463025.ER PARAMETRIC INFO
|
0463025.ER PACKAGE INFO
|
0463025.ER MANUFACTURING INFO
|
0463025.ER PACKAGING INFO
|
0463025.ER APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Philippines
|
|
PARAMETRIC INFO
|
| Type |
Chip |
| Typical Melting I2t (A²s) |
668 |
| Current Rating (A) |
25 |
| Voltage Rating (V) |
250 |
| Acting |
Fast |
| Maximum AC Voltage Rating (V) |
250 |
| Maximum DC Voltage Rating (V) |
100 |
| Application |
Battery Management System|Blade Computing|PC Server|Power Supply|Voltage Regulator Module |
| Fuse Material |
Ceramic |
| Fuse Size (mm) |
10.1 X 3.12 X 3.12 |
| Maximum Operating Temperature (°C) |
125 |
| Minimum Operating Temperature (°C) |
-55 |
| Breaking Capacity @ Rated Voltage (A) |
100@250VAC|300@65VAC|500@72VDC|50@100VDC|1000@32VDC|800@57VDC|1400@48VDC|2500@12VDC |
| Typical Cold Resistance (Ohm) |
0.00215 |
|
|
PACKAGE INFO
|
| Mounting |
Surface Mount |
| Package/Case |
N/A |
| Number of Terminals |
2 |
| Terminal Pitch (mm) |
N/R |
| Product Weight (g) |
N/A |
| Product Length (mm) |
10.1 |
| Product Depth (mm) |
3.05 |
| Product Height (mm) |
3.05 |
| Product Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
N/R |
| Termination Style |
Solder Pad |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
20 to 40 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Ag |
| Under Plating Material |
N/A |
| Terminal Base Material |
Brass |
|
|
PACKAGING INFO
|
| Packaging Suffix |
R |

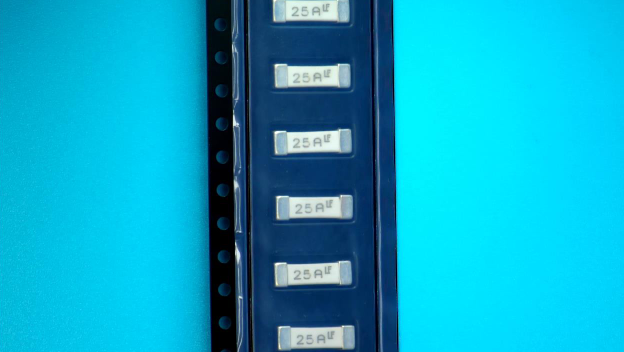

| Packaging |
Tape and Reel |
| Quantity Of Packaging |
2500 |
| Tape Width (mm) |
24 |
| Packaging Document |
Link to Datasheet |
|
|
APPLICATIONS
|
• High end servers / Blade
computing
|
| • Base station power supply |
• Voltage regulator module
|
• Cooling fan system for PC
Server
|
| • Advance Telecommunication
Computing Architecture
(ATCA) applications for cloud
computing |
• Battery Management System
(Industrial Tools)
|
|
| |
