1-1534229-1 COUNTRY OF ORIGIN
|
1-1534229-1 PARAMETRIC INFO
|
1-1534229-1 PACKAGE INFO
|
1-1534229-1 MANUFACTURING INFO
|
1-1534229-1 PACKAGING INFO
|
1-1534229-1 ECAD MODELS
|
|
COUNTRY OF ORIGIN
|
China
|
Switzerland
|
Germany
|
Czechia
|
|
PARAMETRIC INFO
|
| Type |
Housing |
| Gender |
RCP |
| Number of Contacts |
8 |
| Termination Method |
Crimp |
| Maximum Current Rating (A) |
7.5 |
| Maximum Voltage Rating |
50VDC |
| Housing Material |
Glass Filled Polybutylene Terephthalate |
| Housing Color |
Black |
| Number of Rows |
2 |
| Operating Temperature (°C) |
-40 to 120 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
120 |
|
|
PACKAGE INFO
|
| Terminal Pitch (mm) |
N/A |
| Body Orientation |
Straight |
| Mounting |
Cable Mount |
| Product Length (mm) |
31.6 |
| Product Depth (mm) |
20.7 |
| Product Height (mm) |
24 |
| Length Tolerance (mm) |
N/A |
| Depth Tolerance (mm) |
N/A |
| Height Tolerance (mm) |
N/A |
| Product Weight (g) |
N/A |
|
|
MANUFACTURING INFO
|
| MSL |
N/R |
| Maximum Reflow Temperature (°C) |
N/R |
| Reflow Solder Time (Sec) |
N/R |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
N/R |
| Under Plating Material |
N/R |
| Terminal Base Material |
N/R |
|
|
PACKAGING INFO
|
| Packaging |
Box |
| Packaging Document |
Link to Datasheet |
|
|

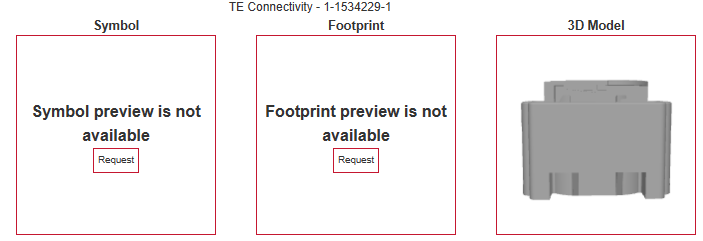

ECAD MODELS
|
|
|
