3-1437290-7 COUNTRY OF ORIGIN
|
3-1437290-7 PARAMETRIC INFO
|
3-1437290-7 PACKAGE INFO
|
3-1437290-7 MANUFACTURING INFO
|
3-1437290-7 PACKAGING INFO
|
3-1437290-7 ECAD MODELS
|
|
COUNTRY OF ORIGIN
|
China
|
United States of America
|
India
|
Japan
|
|
PARAMETRIC INFO
|
| Type |
Housing |
| Gender |
PL |
| Number of Contacts |
26 |
| Termination Method |
Crimp |
| Maximum Voltage Rating |
250VDC|250VAC |
| Housing Material |
Polyester |
| Housing Color |
Black |
| Number of Rows |
4 |
| Wire Size (AWG) |
16-20 |
| Operating Temperature (°C) |
-40 to 125 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
|
|
PACKAGE INFO
|
| Terminal Pitch (mm) |
3 |
| Body Orientation |
Straight |
| Mounting |
Cable Mount |
| Product Length (mm) |
32.2 |
| Product Depth (mm) |
38 |
| Product Height (mm) |
32.15 |
| Product Weight (g) |
N/A |
|
|
MANUFACTURING INFO
|
| MSL |
N/R |
| Maximum Reflow Temperature (°C) |
N/R |
| Reflow Solder Time (Sec) |
N/R |
| Number of Reflow Cycle |
N/R |
| Standard |
N/R |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
N/R |
| Under Plating Material |
N/R |
| Terminal Base Material |
N/R |
| Number of Wave Cycles |
N/R |
|
|
PACKAGING INFO
|
| Packaging |
Tube |
| Packaging Document |
Link to Datasheet |
|
|

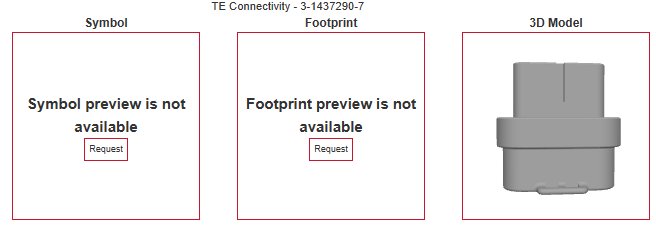

ECAD MODELS
|
|
| |
