6437288-1 COUNTRY OF ORIGIN
|
6437288-1 PARAMETRIC INFO
|
6437288-1 PACKAGE INFO
|
6437288-1 MANUFACTURING INFO
|
6437288-1 PACKAGING INFO
|
6437288-1 ECAD MODELS
|
|
COUNTRY OF ORIGIN
|
China
|
Japan
|
|
PARAMETRIC INFO
|
| Type |
Shrouded Header (4 Sides) |
| Gender |
RCP |
| Number of Contacts |
34 |
| Termination Method |
Solder |
| Maximum Voltage Rating |
250VDC|250VAC |
| Housing Material |
Polyester |
| Housing Color |
Black |
| Contact Material |
Brass |
| Contact Plating |
Gold Over Nickel |
| Number of Rows |
4 |
| Operating Temperature (°C) |
-40 to 125 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
|
|
PACKAGE INFO
|
| Terminal Pitch (mm) |
1.5 |
| Body Orientation |
Right Angle |
| Mounting |
Through Hole |
| Product Length (mm) |
45.5 |
| Product Depth (mm) |
36.5 |
| Product Height (mm) |
28.15 |
|
|
MANUFACTURING INFO
|
| MSL |
N/R |
| Maximum Reflow Temperature (°C) |
N/R |
| Reflow Solder Time (Sec) |
N/R |
| Maximum Wave Temperature (°C) |
240 |
| Wave Solder Time (Sec) |
N/A |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
N/A |
|
|
PACKAGING INFO
|
| Packaging |
Tube |
| Packaging Document |
Link to Datasheet |
|
|

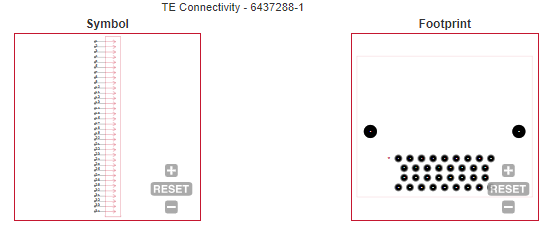

ECAD MODELS
|
|
|
