744222 Wurth Elektronik CMC 1MH 800MA 2LN 6 KOHM SMD

label:
2024/02/18 320



CATALOG
744222 COUNTRY OF ORIGIN
744222 PARAMETRIC INFO
744222 PACKAGE INFO
744222 MANUFACTURING INFO
744222 ECAD MODELS


COUNTRY OF ORIGIN
China


PARAMETRIC INFO
type Data Line/Signal Line/Power Line
Number of Lines 2
Configuration Dual
Inductance (H) 1000u
Impedance (Ohm) 6k(Max)
Leakage Inductance (H) 90n
Test Frequency (Hz) 100k
Maximum DC Current (A) 0.8
Maximum DC Resistance (Ohm) 0.207
Voltage Rating 42VAC|80VDC
Withstand Voltage 500VAC
Maximum Operating Temperature (°C) 125
Minimum Operating Temperature (°C) -40
Inductance Tolerance ±50%
Maximum Storage Temperature (°C) 40
Minimum Storage Temperature (°C) -20


PACKAGE INFO
Install Surface Mount
Product Length (mm) 9.5
Product Depth (mm) 6.3
Product Height (mm) 5.3
Case Size not applicable
Product Weight (g) not applicable


MANUFACTURING INFO
MSL 1
Maximum reflow temperature (°C) 260
Reflow soldering time (seconds) 10 to 30
Reflow temperature source Link to datasheet
Maximum wave soldering temperature (°C) N/R
Wave soldering time (seconds) N/R
Lead Finish(Plating) not applicable
Plating materials not applicable
Terminal Base Material not applicable
Number of Wave Cycles N/R

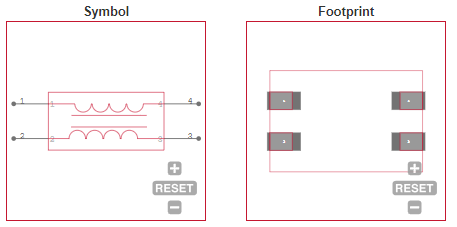

ECAD MODELS
