COUNTRY OF ORIGIN
|
China
|
United States of America
|
Japan
|
|
PARAMETRIC INFO
|
| Series Name |
D-3 |
| Connector Type |
Connector Headers and PCB Receptacles |
| Gender |
SKT |
| Termination Method |
Crimp |
| Contact Type |
Signal |
| Maximum Voltage Rating |
600VDC |
| Maximum Current Rating (A) |
15 |
| Contact Material |
Copper Alloy |
| Contact Plating |
Gold |
| Shielded |
No |
| Wire Size (AWG) |
14-16 |
| Operating Temperature (°C) |
-55 to 105 |
| Minimum Operating Temperature (°C) |
-55 |
| Maximum Operating Temperature (°C) |
105 |
|
|
PACKAGE INFO
|
| Body Orientation |
Straight |
| Mounting |
Cable Mount |
| Product Length (mm) |
18.3 |
| Product Depth (mm) |
4.2 |
| Product Height (mm) |
4.02 |
|
|
MANUFACTURING INFO
|
| MSL |
N/R |
| Maximum Reflow Temperature (°C) |
N/R |
| Reflow Solder Time (Sec) |
N/R |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Au |
| Under Plating Material |
Ni |
| Terminal Base Material |
Cu Alloy |
|
|
PACKAGING INFO
|
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
3000 |
|
|

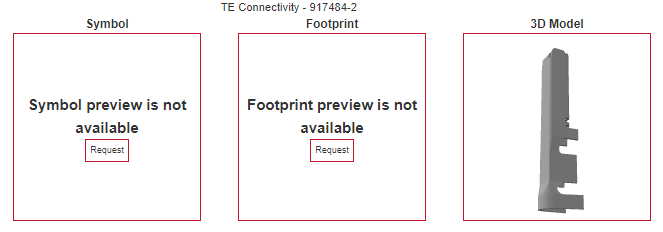

ECAD MODELS
|
|
|
