AD8541ARTZ-REEL7 Analog Devices IC OPAMP GP 1MHZ RRO SOT23-5

label:
2025/02/11 70
AD8541ARTZ-REEL7 Analog Devices 	IC OPAMP GP 1MHZ RRO SOT23-5


• Single-supply operation: 2.7 V to 5.5 V
• Low supply current: 45 µA/amplifier
• Wide bandwidth: 1 MHz
• No phase reversal
• Low input currents: 4 pA
• Unity gain stable


CATALOG
AD8541ARTZ-REEL7 COUNTRY OF ORIGIN
AD8541ARTZ-REEL7 PARAMETRIC INFO
AD8541ARTZ-REEL7 PACKAGE INFO
AD8541ARTZ-REEL7 MANUFACTURING INFO
AD8541ARTZ-REEL7 PACKAGING INFO
AD8541ARTZ-REEL7 ECAD MODELS
AD8541ARTZ-REEL7 APPLICATIONS


COUNTRY OF ORIGIN
Thailand
Malaysia


PARAMETRIC INFO
Manufacturer Type General Purpose Amplifier
Type General Purpose Amplifier
Rail to Rail Rail to Rail Input/Output
Number of Channels per Chip 1
Minimum Single Supply Voltage (V) 2.7
Process Technology CMOS
Minimum PSRR (dB) 65
Typical Single Supply Voltage (V) 3|5
Output Type CMOS
Maximum Single Supply Voltage (V) 5.5
Typical Gain Bandwidth Product (MHz) 1
Maximum Input Offset Voltage (mV) 6@5V
Maximum Input Offset Current (uA) 0.00003@5V
Maximum Input Bias Current (uA) 0.00006@5V
Maximum Operating Supply Voltage (V) 5.5
Maximum Input Voltage Range (V) 0 to 5
Maximum Supply Voltage Range (V) 5.5 to 6
Minimum CMRR (dB) 40
Minimum CMRR Range (dB) <50
Typical Voltage Gain (dB) 92.04
Minimum Slew Rate (V/us) 0.45@5V
Typical Input Offset Current (uA) 0.0000001@5V
Typical Slew Rate (V/us) 0.92@5V
Typical Settling Time (ns) 6000
Typical Output Current (mA) 30@5V
Typical Input Noise Voltage Density (nV/rtHz) 42@5V
Typical Input Bias Current (uA) 0.000004@5V
Typical Noninverting Input Current Noise Density (pA/rtHz) 0.1@5V
Shut Down Support No
Minimum Operating Temperature (°C) -40
Maximum Operating Temperature (°C) 125
Supplier Temperature Grade Extended Industrial
Minimum Storage Temperature (°C) -65
Maximum Storage Temperature (°C) 150
Power Supply Type Single
Maximum Supply Current (mA) 0.065@5V
Typical Output Resistance (Ohm) 45
Typical High Level Output Voltage (V) 4.965
Typical Low Level Output Voltage (V) 0.025
Input Offset Voltage Drift (uV/°C) 4(Typ)


PACKAGE INFO
Supplier Package SOT-23
Basic Package Type Lead-Frame SMT
Pin Count 5
Lead Shape Gull-wing
PCB 5
Tab N/R
Pin Pitch (mm) 0.95
Package Length (mm) 2.9
Package Width (mm) 1.6
Package Height (mm) 1.15
Package Diameter (mm) N/R
Seated Plane Height (mm) 1.45(Max)
Mounting Surface Mount
Package Weight (g) N/A
Package Material Plastic
Package Description Small Outline Transistor
Package Family Name SOT
Jedec MO-178AA
Package Outline Link to Datasheet


MANUFACTURING INFO
MSL 1
Maximum Reflow Temperature (°C) 260
Reflow Solder Time (Sec) 30
Number of Reflow Cycle 3
Standard J-STD-020D
Maximum Wave Temperature (°C) N/R
Wave Solder Time (Sec) N/R
Wave Temp. Source Link to Datasheet
Lead Finish(Plating) Matte Sn annealed
Under Plating Material Ag
Terminal Base Material Cu Alloy
Number of Wave Cycles N/R

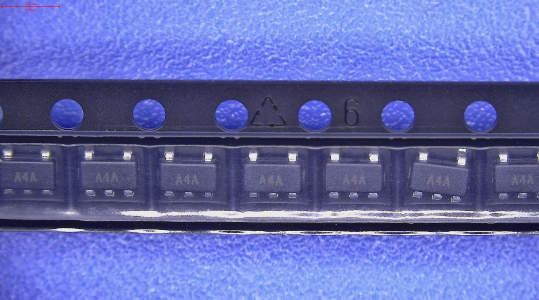

PACKAGING INFO
Packaging Suffix REEL7
Packaging Tape and Reel
Quantity Of Packaging 3000
Reel Diameter (in) 7
Tape Pitch (mm) 4
Tape Width (mm) 8
Component Orientation Q4
Packaging Document Link to Datasheet
Tape Material Plastic
Tape Type Embossed

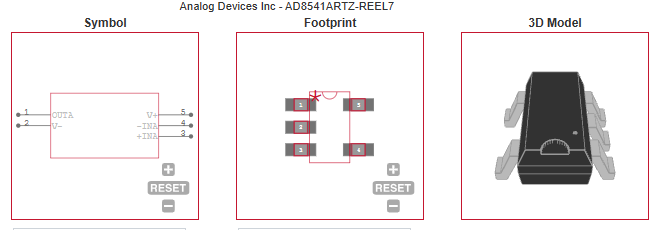

ECAD MODELS


APPLICATIONS
• ASIC input or output amplifiers
• Sensor interfaces
• Piezoelectric transducer amplifiers
• Medical instrumentation
• Mobile communications
• Audio outputs
• Portable systems
