AD8541ARZ-REEL7 Analog Devices IC OPAMP GP 1MHZ RRO 8SOIC

label:
2024/02/1 375



• Single-supply operation: 2.7 V to 5.5 V
• Low supply current: 45 µA/amplifier
• Wide bandwidth: 1 MHz
• No phase reversal
• Low input currents: 4 pA
• Rail-to-rail input and output
• Unity gain stable
• Rail-to-rail input and output
•  AEC-Q100 qualified for automotive applications


CATALOG
AD8541ARZ-REEL7 COUNTRY OF ORIGIN
AD8541ARZ-REEL7 PARAMETRIC INFO
AD8541ARZ-REEL7 PACKAGE INFO
AD8541ARZ-REEL7 MANUFACTURING INFO
AD8541ARZ-REEL7 PACKAGING INFO
AD8541ARZ-REEL7 ECAD MODELS
AD8541ARZ-REEL7 APPLICATIONS


COUNTRY OF ORIGIN
China
Taiwan (Province of China)


PARAMETRIC INFO
Manufacturer Type General Purpose Amplifier
Type General Purpose Amplifier
Rail to Rail Rail to Rail Input/Output
Minimum Single Supply Voltage (V) 2.7
Number of Channels per Chip 1
Process Technology CMOS
Minimum PSRR (dB) 65
Typical Single Supply Voltage (V) 3|5
Maximum Single Supply Voltage (V) 5.5
Output Type CMOS
Typical Gain Bandwidth Product (MHz) 1
Maximum Input Offset Voltage (mV) 6@5V
Maximum Input Offset Current (uA) 0.00003@5V
Maximum Input Voltage Range (V) 0 to 5
Maximum Operating Supply Voltage (V) 5.5
Maximum Input Bias Current (uA) 0.00006@5V
Minimum CMRR (dB) 40
Maximum Supply Voltage Range (V) 5.5 to 6
Minimum CMRR Range (dB) <50
Typical Voltage Gain (dB) 92.04
Typical Slew Rate (V/us) 0.92@5V
Minimum Slew Rate (V/us) 0.45@5V
Typical Input Offset Current (uA) 0.0000001@5V
Typical Settling Time (ns) 6000
Typical Output Current (mA) 30@5V
Typical Input Noise Voltage Density (nV/rtHz) 42@5V
Typical Noninverting Input Current Noise Density (pA/rtHz) 0.1@5V
Typical Input Bias Current (uA) 0.000004@5V
Shut Down Support No
Minimum Operating Temperature (°C) -40
Maximum Operating Temperature (°C) 125
Supplier Temperature Grade Extended Industrial
Minimum Storage Temperature (°C) -65
Maximum Storage Temperature (°C) 150
Power Supply Type Single
Maximum Supply Current (mA) 0.065@5V
Typical Output Resistance (Ohm) 45
Typical High Level Output Voltage (V) 4.965
Typical Low Level Output Voltage (V) 0.025
Input Offset Voltage Drift (uV/°C) 4(Typ)


PACKAGE INFO
Supplier Package SOIC N
Basic Package Type Lead-Frame SMT
Pin Count 8
Lead Shape Gull-wing
PCB 8
Tab N/R
Pin Pitch (mm) 1.27
Package Length (mm) 5(Max)
Package Width (mm) 4(Max)
Package Height (mm) 1.5(Max)
Package Diameter (mm) N/R
Package Overall Length (mm) 5(Max)
Package Overall Width (mm) 6.2(Max)
Package Overall Height (mm) 1.75(Max)
Seated Plane Height (mm) 1.75(Max)
Mounting Surface Mount
Package Weight (g) N/A
Package Material Plastic
Package Description Small Outline IC Narrow Body
Package Family Name SO
Jedec MS-012AA
Package Outline Link to Datasheet


MANUFACTURING INFO
MSL 1
Maximum Reflow Temperature (°C) 260
Reflow Solder Time (Sec) 30
Number of Reflow Cycle 3
Standard J-STD-020D
Maximum Wave Temperature (°C) N/R
Wave Solder Time (Sec) N/R
Lead Finish(Plating) Matte Sn annealed
Under Plating Material Ag
Terminal Base Material Cu Alloy
Number of Wave Cycles N/R

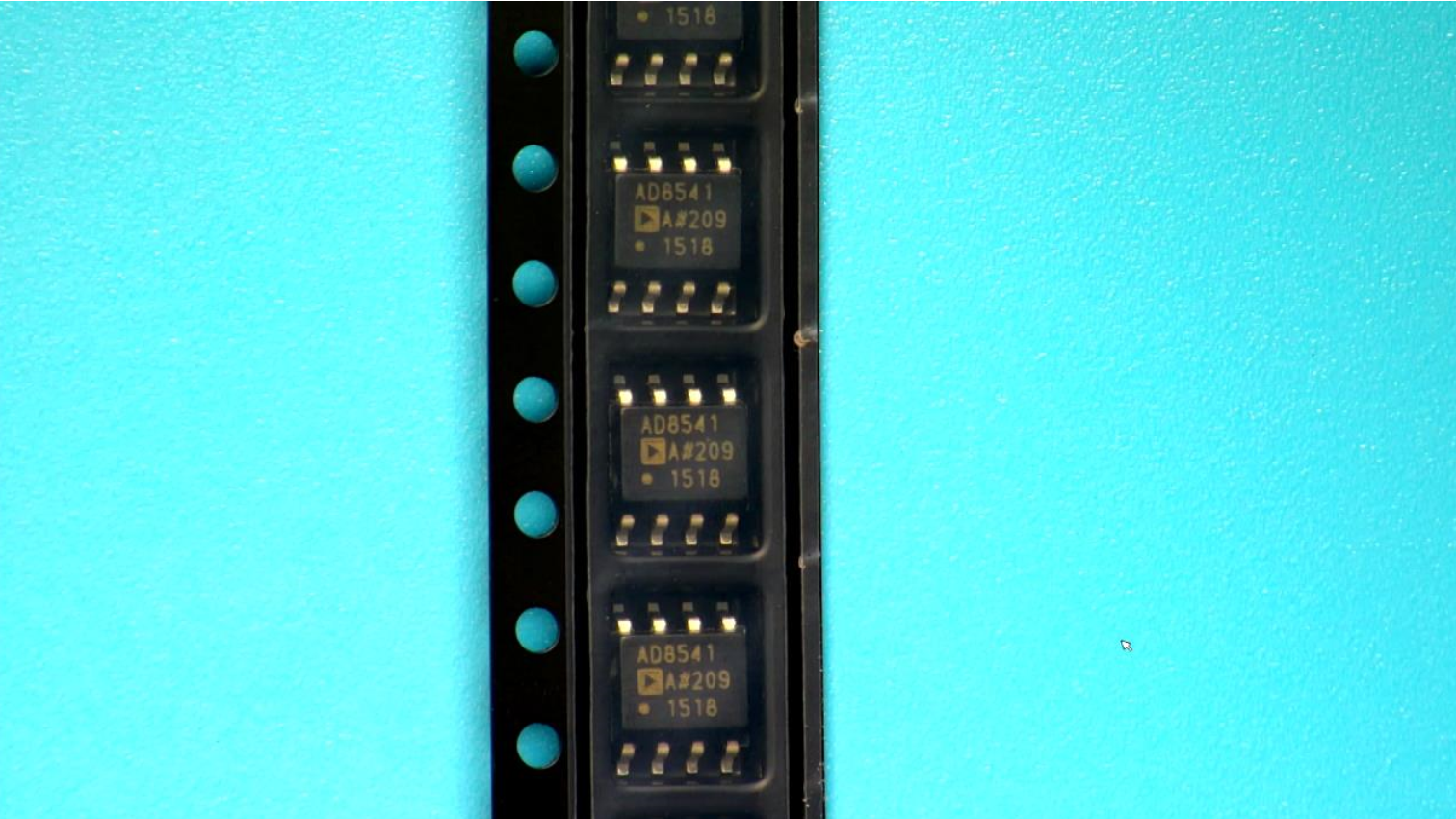

PACKAGING INFO
Packaging Suffix REEL7
Packaging Tape and Reel
Quantity Of Packaging 1000
Reel Diameter (in) 7
Tape Pitch (mm) 8
Tape Width (mm) 12
Component Orientation Q1
Packaging Document Link to Datasheet
Tape Material Plastic
Tape Type Embossed

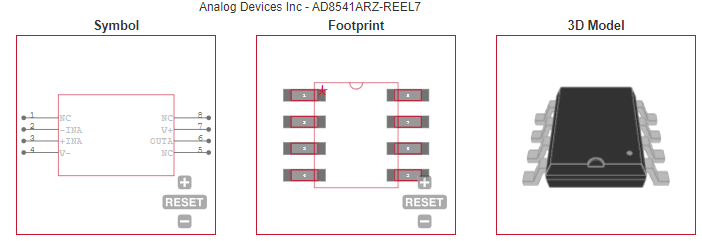

ECAD MODELS



APPLICATIONS
• ASIC input or output amplifiers
• Sensor interfaces
• Piezoelectric transducer amplifiers
• Medical instrumentation
• Mobile communications
• Audio outputs
• Portable systems
