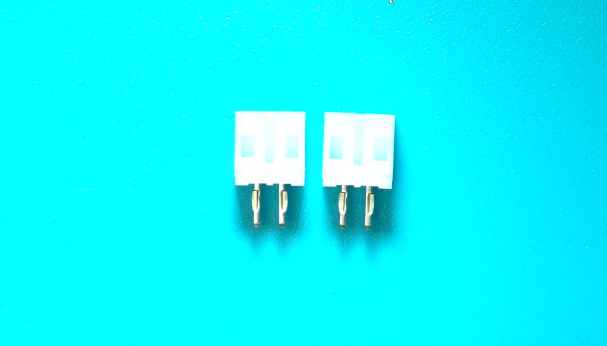

| B2B-PH-K-S (LF)(SN) COUNTRY OF ORIGIN |
B2B-PH-K-S (LF)(SN) PARAMETRIC INFO
|
B2B-PH-K-S (LF)(SN) PACKAGE INFO
|
B2B-PH-K-S (LF)(SN) MANUFACTURING INFO
|
B2B-PH-K-S (LF)(SN) PACKAGING INFO
|
B2B-PH-K-S (LF)(SN) EACD MODELS
|
|
| COUNTRY OF ORIGIN |
| Malaysia |
|
PARAMETRIC INFO
|
| Type |
Shrouded Header (4 Sides) |
| Gender |
HDR |
| Number of Contacts |
2 |
| Termination Method |
Solder |
| Maximum Current Rating (A) |
2 |
| Maximum Voltage Rating |
100VDC|100VAC |
| Housing Material |
Polyamide 6/6 |
| Housing Color |
White |
| Contact Material |
Brass |
| Contact Plating |
Tin Over Copper |
| Number of Rows |
1 |
| Maximum Contact Resistance (mOhm) |
20 |
| Polarization Type |
Center Slot |
| Wire Size (AWG) |
24-32 |
| Insulation Resistance (MOhm) |
1000 |
| Operating Temperature (°C) |
-25 to 85 |
| Minimum Operating Temperature (°C) |
-25 |
| Maximum Operating Temperature (°C) |
85 |
| Maximum Terminal Width (mm) |
0.5(Typ) |
| Tail Length (mm) |
3.4 |
|
|
PACKAGE INFO
|
| Terminal Pitch (mm) |
2 |
| Body Orientation |
Straight |
| Mounting |
Through Hole |
| Product Length (mm) |
5.9 |
| Product Length (Ejector Open) (mm) |
N/R |
| Product Depth (mm) |
4.5 |
| Product Height (mm) |
6 |
| Product Weight (g) |
N/A |
|
|
MANUFACTURING INFO
|
| MSL |
N/R |
| Maximum Reflow Temperature (°C) |
N/R |
| Reflow Solder Time (Sec) |
N/R |
| Number of Reflow Cycle |
N/R |
| Standard |
N/R |
| Maximum Wave Temperature (°C) |
N/A |
| Wave Solder Time (Sec) |
N/A |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Sn |
| Under Plating Material |
Cu |
| Terminal Base Material |
Brass |
|
|
PACKAGING INFO
|
| Packaging |
Box |
| Quantity Of Packaging |
1000 |
| Packaging Document |
Link to Datasheet |
|
|

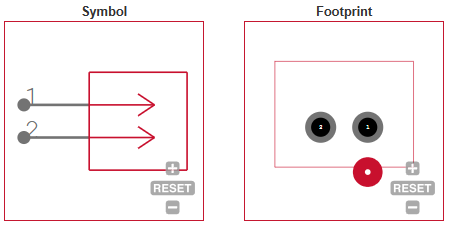

ECAD MODELS
|
|
| |
