| B4B-PH-SM4-TB (LF)(SN) COUNTRY OF ORIGIN |
B4B-PH-SM4-TB (LF)(SN) PARAMETRIC INFO
|
B4B-PH-SM4-TB (LF)(SN) PACKAGE INFO
|
B4B-PH-SM4-TB (LF)(SN) MANUFACTURING INFO
|
B4B-PH-SM4-TB (LF)(SN) PACKAGING INFO
|
B4B-PH-SM4-TB (LF)(SN) EACD MODELS
|
| |
| COUNTRY OF ORIGIN |
| France |
| |
PARAMETRIC INFO
|
| type |
Shrouded Header (4 Sides) |
| Gender |
HDR |
| Number of Contacts |
4 |
| Termination Method |
Solder |
| Maximum Current Rating (A) |
2 |
| Maximum Voltage Rating |
100VDC|100VAC |
| Housing Material |
Polyamide |
| Housing Color |
Ivory |
| Contact Material |
Copper Alloy |
| Contact Plating |
Tin Over Copper |
| Number of Rows |
1 |
| Maximum Contact Resistance (mOhm) |
20 |
| Polarization Type |
Center Slot |
| Wire Size (AWG) |
24-32 |
| Insulation Resistance (MOhm) |
1000 |
| Operating Temperature (°C) |
-25 to 85 |
| Minimum Operating Temperature (°C) |
-25 |
| Maximum Operating Temperature (°C) |
85 |
| Mounting Ears |
no |
|
| |
PACKAGE INFO
|
| Terminal Pitch (mm) |
2 |
| Body Orientation |
Straight |
| Install |
Surface Mount |
| Product Length (mm) |
11.95 |
| Product Length (Ejector Open) (mm) |
N/R |
| Product Depth (mm) |
7 |
| Product Height (mm) |
6.6 |
| Length Tolerance (mm) |
±0.05 |
| Depth Tolerance (mm) |
±0.05 |
| Height Tolerance (mm) |
±0.05 |
| Product Weight (g) |
not applicable |
| Maximum Product Depth (mm) |
7.05 |
| Maximum Product Height (mm) |
-1 |
| Maximum Product Length (mm) |
12 |
|
| |
MANUFACTURING INFO
|
| MSL |
not applicable |
| Maximum reflow temperature (°C) |
not applicable |
| Reflow soldering time (seconds) |
not applicable |
| Number of reflow cycles |
not applicable |
| standard |
not applicable |
| Reflow temperature source |
Link to datasheet |
| Maximum wave soldering temperature (°C) |
N/R |
| Wave soldering time (seconds) |
N/R |
| Wave soldering temperature source |
Link to datasheet |
| Lead Finish(Plating) |
Sn |
| Plating materials |
Cu |
| Terminal Base Material |
Cu Alloy |
| Number of Wave Cycles |
N/R |
|
| |
PACKAGING INFO
|

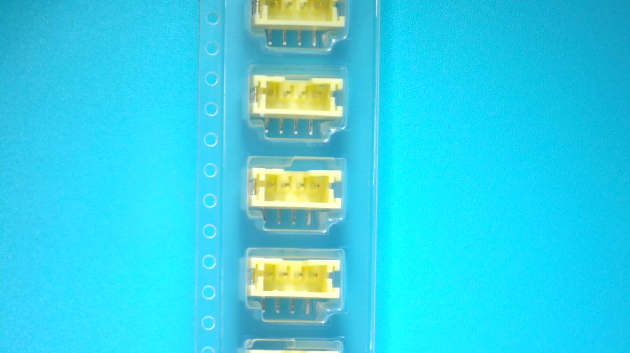

| Package |
Tape and reel packaging |
| Packing quantity |
1000 |
|
| |

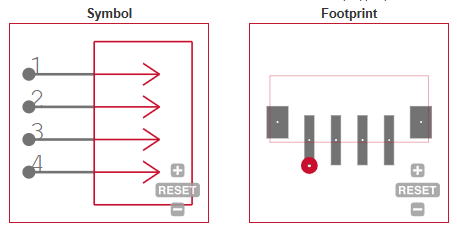

ECAD MODELS
|
|
