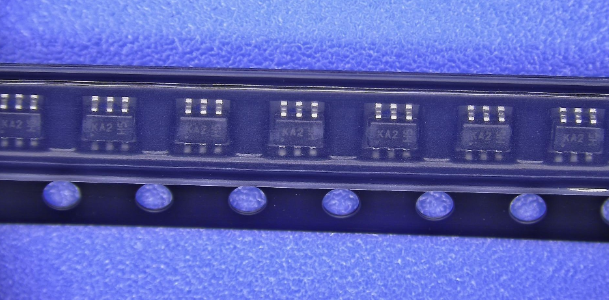

BAS16TWQ-13R-F Diodes Incorporated DIODE FS 100V 150MA SOT363

label:
2024/08/7 175
BAS16TWQ-13R-F Diodes Incorporated DIODE FS 100V 150MA SOT363


• Fast Switching Speed
• Small Surface Mount Package
• For General Purpose Switching Applications
• High Conductance
• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)
• Qualified to AEC-Q101 Standards for High Reliability
• PPAP Capable (Note 4)


CATALOG
BAS16TWQ-13R-F COUNTRY OF ORIGIN
BAS16TWQ-13R-F PARAMETRIC INFO
BAS16TWQ-13R-F PACKAGE INFO
BAS16TWQ-13R-F MANUFACTURING INFO
BAS16TWQ-13R-F PACKAGING INFO


COUNTRY OF ORIGIN
Japan
China


PARAMETRIC INFO
Type Small Signal Switching Diode
Configuration Triple Parallel
Maximum DC Reverse Voltage (V) 75
Peak Reverse Repetitive Voltage (V) 75
Maximum Continuous Forward Current (A) 0.3
Maximum Power Dissipation (mW) 200
Speed Ultra Fast Recovery Rectifier
Peak Forward Voltage (V) 1.25@0.15A
Peak Non-Repetitive Surge Current (A) 2
Peak Reverse Current (uA) 1
Peak Reverse Recovery Time (ns) 4
Operating Junction Temperature (°C) -65 to 150
Minimum Storage Temperature (°C) -65
Maximum Storage Temperature (°C) 150
Maximum Diode Capacitance (pF) 2
Minimum Operating Temperature (°C) -65
Maximum Operating Temperature (°C) 150
Supplier Temperature Grade Automotive


PACKAGE INFO
Supplier Package SOT-363
Basic Package Type Lead-Frame SMT
Pin Count 6
Lead Shape Gull-wing
PCB 6
Tab N/R
Pin Pitch (mm) 0.65
Package Length (mm) 2.15
Package Width (mm) 1.3
Package Height (mm) 0.95
Package Diameter (mm) N/R
Package Overall Length (mm) 2.15
Package Overall Width (mm) 2.1
Package Overall Height (mm) 1
Seated Plane Height (mm) 1
Mounting Surface Mount
Package Weight (g) N/A
Package Material Plastic
Package Description Small Outline Transistor
Package Family Name SOT
Jedec N/A
Package Outline Link to Datasheet


MANUFACTURING INFO
Maximum Reflow Temperature (°C) 260
Reflow Solder Time (Sec) 30
Number of Reflow Cycle 3
Standard J-STD-020D
Reflow Temp. Source Link to Datasheet
Maximum Wave Temperature (°C) N/R
Lead Finish(Plating) Matte Sn annealed


PACKAGING INFO
Packaging Suffix 13
Packaging Tape and Reel
Quantity Of Packaging 10000
Packaging Document Link to Datasheet
