BAS70LP-7B Diodes Incorporated DIODE SCHTTKY 70V 70MA X1DFN1006

label:
2025/02/25 60
BAS70LP-7B Diodes Incorporated DIODE SCHTTKY 70V 70MA X1DFN1006


• Low Turn-On Voltage
• Fast Switching
• PN Junction Guard Ring for Transient And ESD Protection
• Ultra-Small Surface Mount Package
• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)


CATALOG
BAS70LP-7B PARAMETRIC INFO
BAS70LP-7B PACKAGE INFO
BAS70LP-7B MANUFACTURING INFO
BAS70LP-7B PACKAGING INFO
BAS70LP-7B ECAD MODELS


PARAMETRIC INFO
Type Schottky Diode
Configuration Single
Peak Reverse Repetitive Voltage (V) 70
Maximum DC Reverse Voltage (V) 70
Maximum Continuous Forward Current (A) 0.07
Maximum Power Dissipation (mW) 430
Maximum Junction Ambient Thermal Resistance 295°C/W
Peak Forward Voltage (V) 0.96@0.015A
Peak Non-Repetitive Surge Current (A) 0.8
Peak Reverse Current (uA) 10
Peak Reverse Recovery Time (ns) 1.6(Typ)
Operating Junction Temperature (°C) -65 to 150
Minimum Storage Temperature (°C) -65
Maximum Storage Temperature (°C) 150
Maximum Diode Capacitance (pF) 1(Typ)
Minimum Operating Temperature (°C) -65
Maximum Operating Temperature (°C) 150


PACKAGE INFO
Supplier Package X1-DFN
Basic Package Type Non-Lead-Frame SMT
Pin Count 2
Lead Shape No Lead
PCB 2
Tab N/R
Pin Pitch (mm) 0.65
Package Length (mm) 1
Package Width (mm) 0.6
Package Height (mm) 0.47
Package Diameter (mm) N/R
Package Overall Length (mm) 1
Package Overall Width (mm) 0.6
Package Overall Height (mm) 0.5
Seated Plane Height (mm) 0.5
Mounting Surface Mount
Package Weight (g) 0.001
Package Material Plastic
Package Description Dual Flat Package No Lead
Package Family Name DFN
Jedec N/A
Package Outline Link to Datasheet


MANUFACTURING INFO
MSL 1
Maximum Reflow Temperature (°C) 260
Reflow Solder Time (Sec) 30
Number of Reflow Cycle 3
Standard J-STD-020D
Reflow Temp. Source Link to Datasheet
Maximum Wave Temperature (°C) N/R
Wave Solder Time (Sec) N/R
Lead Finish(Plating) Au
Under Plating Material Pd over Ni
Terminal Base Material Cu
Number of Wave Cycles N/R

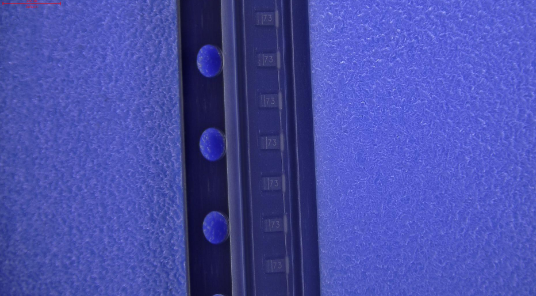

PACKAGING INFO
Packaging Suffix 7B
Packaging Tape and Reel
Quantity Of Packaging 10000
Reel Diameter (in) 7
Reel Width (mm) 8.4
Tape Pitch (mm) 2
Tape Width (mm) 8
Feed Hole Pitch (mm) 4
Hole Center to Component Center (mm) 2
Component Orientation Cathode At Sprocket Hole
Packaging Document Link to Datasheet
Tape Type Embossed

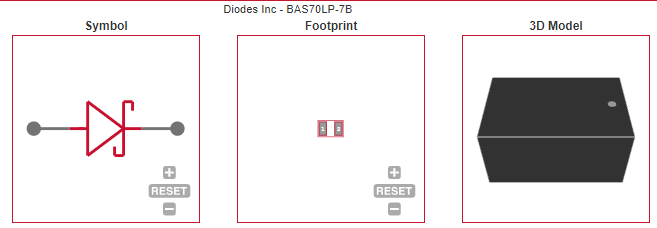

ECAD MODELS
