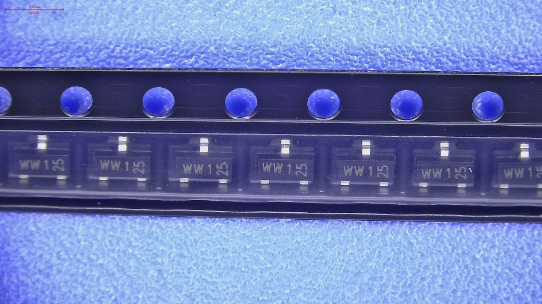

BAT54C Diotec Semiconductor DIODE ARRAY SCHOTTKY 30V SOT23-3

label:
2024/05/7 288

• Low forward voltage
• Low capacitance
• AEC-Q101 qualified
CATALOG
BAT54C COUNTRY OF ORIGIN
BAT54C PARAMETRIC INFO
BAT54C PACKAGE INFO
BAT54C MANUFACTURING INFO
BAT54C PACKAGING INFO
BAT54C EACD MODELS
BAT54C APPLICATIONS



COUNTRY OF ORIGIN
Malaysia
Germany
China
Philippines



PARAMETRIC INFO
Type Schottky Diode
Configuration Dual Common Cathode
Maximum DC Reverse Voltage (V) 30
Maximum Continuous Forward Current (A) 0.2
Maximum Power Dissipation (mW) 250
Maximum Junction Ambient Thermal Resistance 500K/W
Peak Forward Voltage (V) 0.8@0.1A
Peak Non-Repetitive Surge Current (A) 0.6
Peak Reverse Current (uA) 2@25V
Peak Reverse Recovery Time (ns) 5
Operating Junction Temperature (°C) 150
Minimum Storage Temperature (°C) -65
Maximum Storage Temperature (°C) 150
Maximum Diode Capacitance (pF) 10
Minimum Operating Temperature (°C) -55
Maximum Operating Temperature (°C) 150
Supplier Temperature Grade Automotive



PACKAGE INFO
Supplier Package SOT-23
Basic Package Type Lead-Frame SMT
Pin Count 3
Lead Shape Gull-wing
PCB 3
Tab N/R
Pin Pitch (mm) 0.95
Package Length (mm) 3(Max)
Package Width (mm) 1.4(Max)
Package Height (mm) 1(Max)
Package Diameter (mm) N/R
Package Overall Length (mm) 3(Max)
Package Overall Width (mm) 2.5(Max)
Package Overall Height (mm) 1.1(Max)
Seated Plane Height (mm) 1.1(Max)
Mounting Surface Mount
Package Weight (g) N/A
Package Material Plastic
Package Description Small Outline Transistor
Package Family Name SOT
Jedec TO-236AB
Package Outline Link to Datasheet



MANUFACTURING INFO
MSL 1
Maximum Reflow Temperature (°C) 260
Reflow Solder Time (Sec) 30
Number of Reflow Cycle 3
Standard N/A
Maximum Wave Temperature (°C) 260
Wave Solder Time (Sec) 10
Lead Finish(Plating) Sn
Under Plating Material CuAg
Terminal Base Material FeNi Alloy
Shelf Life Period 4 Years
Shelf Life Condition 8°C to 45°C+25 % to 75 % RH
Number of Wave Cycles 1



PACKAGING INFO
Packaging Document Link to Datasheet



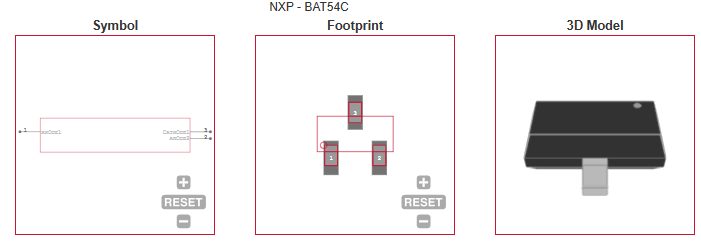

ECAD MODELS




APPLICATIONS
• Ultra high-speed switching
• Line termination
• Voltage clamping
• Reverse polarity protection
