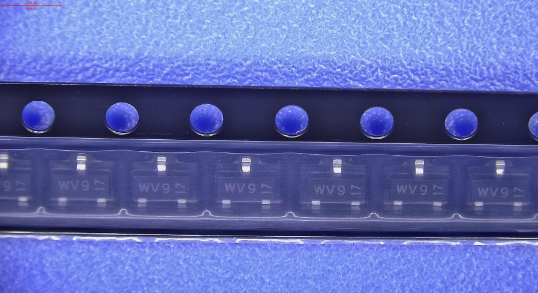

BAV23C Diodes Incorporated DIODE, SWITCHING, CC, 400MA, 250

label:

2024/09/2 197

BAV23C Diodes Incorporated DIODE, SWITCHING, CC, 400MA, 250

• High switching speed: trr 50 ns

• Low leakage current

• Repetitive peak reverse voltage:VRRM 250 V

• Low capacitance: Cd 2 pF

• Small SMD plastic package

CATALOG

BAV23C COUNTRY OF ORIGIN

BAV23C PARAMETRIC INFO

BAV23C PACKAGE INFO

BAV23C MANUFACTURING INFO

BAV23C PACKAGING INFO

BAV23C APPLICATIONS

COUNTRY OF ORIGIN

China

Malaysia

Germany

PARAMETRIC INFO

Type	Switching Diode
Configuration	Dual Common Cathode
Maximum DC Reverse Voltage (V)	200
Peak Reverse Repetitive Voltage (V)	250
Maximum Continuous Forward Current (A)	0.225
Maximum Power Dissipation (mW)	250
Speed	Ultra Fast Recovery Rectifier
Maximum Junction Ambient Thermal Resistance	500K/W
Peak Forward Voltage (V)	1.25@0.2A
Peak Non-Repetitive Surge Current (A)	9
Peak Reverse Current (uA)	0.1
Peak Reverse Recovery Time (ns)	50
Operating Junction Temperature (°C)	150
Minimum Storage Temperature (°C)	-65
Maximum Storage Temperature (°C)	150
Maximum Diode Capacitance (pF)	2
Minimum Operating Temperature (°C)	-65
Maximum Operating Temperature (°C)	150
Supplier Temperature Grade	Automotive

Supplier Package	SOT-23
Basic Package Type	Lead-Frame SMT
Pin Count	3
Lead Shape	Gull-wing
PCB	3
Tab	N/R
Pin Pitch (mm)	0.95
Package Length (mm)	3(Max)
Package Width (mm)	1.4(Max)
Package Height (mm)	1(Max)
Package Diameter (mm)	N/R
Package Overall Length (mm)	3(Max)
Package Overall Width (mm)	2.5(Max)
Package Overall Height (mm)	1.1(Max)
Seated Plane Height (mm)	1.1(Max)
Mounting	Surface Mount
Package Weight (g)	N/A
Package Material	Plastic
Package Description	Small Outline Transistor
Package Family Name	SOT
Jedec	TO-236AB
Package Outline	Link to Datasheet

MANUFACTURING INFO

MSL	1
Maximum Reflow Temperature (°C)	260
Reflow Solder Time (Sec)	30
Number of Reflow Cycle	3
Standard	N/A
Reflow Temp. Source	Link to Datasheet
Maximum Wave Temperature (°C)	260
Wave Solder Time (Sec)	10
Lead Finish(Plating)	Sn
Under Plating Material	CuAg
Terminal Base Material	FeNi Alloy
Number of Wave Cycles	1

Packaging Document

Link to Datasheet

• High-speed switching at high voltage

• High-voltage general-purpose switching
