BC846B,215 Nexperia TRANS NPN 65V 0.1A SOT23

label:
2024/07/8 165

• General-purpose transistors
• SMD plastic package
• Two different gain selections
CATALOG
BC846B,215 COUNTRY OF ORIGIN
BC846B,215 PARAMETRIC INFO
BC846B,215 PACKAGE INFO
BC846B,215 MANUFACTURING INFO
BC846B,215 PACKAGING INFO
BC846B,215 EACD MODELS
BC846B,215 APPLICATIONS



COUNTRY OF ORIGIN
China



PARAMETRIC INFO
Type NPN
Configuration Single
Maximum Collector-Emitter Voltage (V) 65
Maximum Collector Base Voltage (V) 80
Maximum Emitter Base Voltage (V) 6
Maximum DC Collector Current (A) 0.1
Minimum Transition Frequency (MHz) 100
Maximum Power Dissipation (mW) 250
Maximum Noise Figure (dB) 10
Maximum Emitter Cut-Off Current (nA) 100
Maximum Junction Ambient Thermal Resistance 500K/W
Typical Input Capacitance (pF) 11
Typical Output Capacitance (pF) 2
Operating Junction Temperature (°C) 150
Maximum Collector Cut-Off Current (nA) 15
Maximum Collector-Emitter Saturation Voltage (V) 0.2@0.5mA@10mA|0.4@5mA@100mA
Maximum Base Emitter Saturation Voltage (V) 0.76(Typ)@0.5mA@10mA|0.9(Typ)@5mA@100mA
Category Bipolar Small Signal
Minimum DC Current Gain 200@2mA@5V
Number of Elements per Chip 1
Minimum Storage Temperature (°C) -65
Maximum Storage Temperature (°C) 150
Minimum Operating Temperature (°C) -65
Maximum Operating Temperature (°C) 150



PACKAGE INFO
Supplier Package SOT-23
Basic Package Type Lead-Frame SMT
Pin Count 3
Lead Shape Gull-wing
PCB 3
Tab N/R
Pin Pitch (mm) 0.95
Package Length (mm) 3(Max)
Package Width (mm) 1.4(Max)
Package Height (mm) 1(Max)
Package Diameter (mm) N/R
Package Overall Length (mm) 3(Max)
Package Overall Width (mm) 2.5(Max)
Package Overall Height (mm) 1.1(Max)
Seated Plane Height (mm) 1.1(Max)
Mounting Surface Mount
Package Weight (g) N/A
Package Material Plastic
Package Description Small Outline Transistor
Package Family Name SOT
Jedec TO-236AB
Package Outline Link to Datasheet



MANUFACTURING INFO
MSL 1
Maximum Reflow Temperature (°C) 260
Reflow Solder Time (Sec) 30
Number of Reflow Cycle 3
Standard N/A
Reflow Temp. Source Link to Datasheet
Maximum Wave Temperature (°C) 260
Wave Solder Time (Sec) 10
Lead Finish(Plating) Sn
Under Plating Material CuAg
Terminal Base Material FeNi Alloy
Shelf Life Period 4 Years
Shelf Life Condition 8°C to 45°C+25 % to 75 % RH
Number of Wave Cycles 1



PACKAGING INFO
Packaging Suffix 215

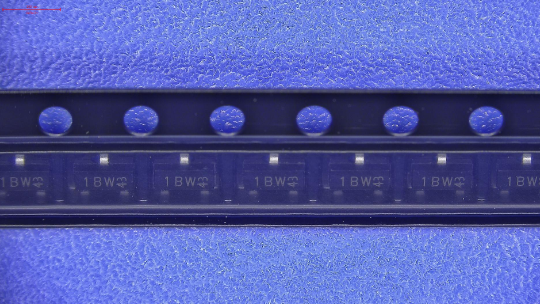

Packaging Tape and Reel
Quantity Of Packaging 3000
Reel Diameter (in) 7
Reel Width (mm) 8
Tape Pitch (mm) 4
Tape Width (mm) 8
Feed Hole Pitch (mm) 4
Component Orientation Q3
Packaging Document Link to Datasheet

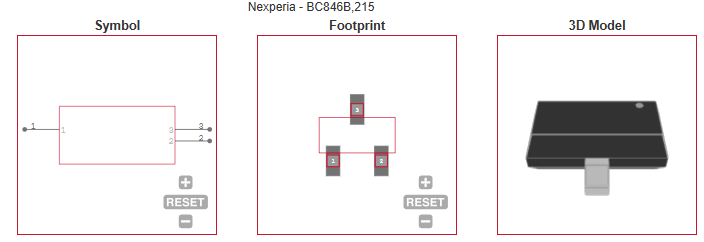

ECAD MODELS




APPLICATIONS
• General-purpose switching and amplification
