BSS138-7-F Diodes Incorporated N-CHANNEL ENHANCEMENT MODE MOSFET

label:
2023/08/7 1,172


Low On-Reslstance
Low Gate Threshold Voltage
Low Input Capacitance
Fast Switching Speed
Low Input/Output Leakage
Totally Lead-Free &Fully RoHS Compliant (Notes 1&2)
Halogen and Antlmony Free.“Green”Device (Note 3)
Qualified to AEC-Q101 Standards for High Rellability



 CATALOG
COUNTRY OF ORIGIN
PACKAGE INFO
PARAMETRIC INFO
MANUFACTURING INFO
PACKAGING INFO
Country of Origin
China
Japan
Taiwan(Province of China)
Package Info
Supplier Package SOT-23
Basic Package Type Lead-Frame SMT
Pin Count 3
Lead Shape Gull-wing
PCB 3
Tab N/R
Pin Pitch (mm) 0.92
Package Length (mm) 2.9
Package Width (mm) 1.3
Package Height (mm) 0.98
Package Diameter (mm) N/R
Package Overall Length (mm) 2.9
Package Overall Width (mm) 2.4
Package Overall Height (mm) 1.03
Seated Plane Height (mm) 1.03
Mounting Surface Mount
Package Weight (g) 0.008
Package Material Plastic
Package Description Small Outline Transistor
Package Family Name SOT
Jedec TO-236AB
Package Outline Link to Datasheet

Parametric Info
Channel Type N
Channel Mode Enhancement
Configuration Single
Maximum Drain Source Voltage (V) 50
Maximum Continuous Drain Current (A) 0.2
Maximum Gate Source Voltage (V) ±20
Maximum Drain Source Resistance (mOhm) 3500@10V
Operating Junction Temperature (°C) -55 to 150
Maximum Power Dissipation (mW) 300
Minimum Gate Threshold Voltage (V) 0.5
Category Small Signal
Typical Output Capacitance (pF) 25(Max)
Maximum Junction Ambient Thermal Resistance 417°C/W
Maximum Positive Gate Source Voltage (V) 20
Typical Input Capacitance @ Vds (pF) 50(Max)@10V
Typical Gate Threshold Voltage (V) 1.2
Typical Reverse Transfer Capacitance @ Vds (pF) 8(Max)@10V
Typical Forward Transconductance (S) 0.1(Min)
Maximum Pulsed Drain Current @ TC=25°C (A) 1
Typical Turn-On Delay Time (ns) 20(Max)
Typical Turn-Off Delay Time (ns) 20(Max)
Maximum Gate Source Leakage Current (nA) 100
Maximum Gate Threshold Voltage (V) 1.5
Maximum IDSS (uA) 0.5
Number of Elements per Chip 1
Minimum Storage Temperature (°C) -55
Maximum Storage Temperature (°C) 150
Minimum Operating Temperature (°C) -55
Maximum Operating Temperature (°C) 150
Supplier Temperature Grade Commercial

Manufacturing Info
MSL 1
Maximum Reflow Temperature (°C) 260
Reflow Solder Time (Sec) 30
Number of Reflow Cycle 3
Standard J-STD-020D
Reflow Temp. Source Link to Datasheet
Maximum Wave Temperature (°C) N/R
Wave Solder Time (Sec) N/R
Lead Finish(Plating) Matte Sn annealed
Under Plating Material Ag
Terminal Base Material Alloy 42
Number of Wave Cycles N/R

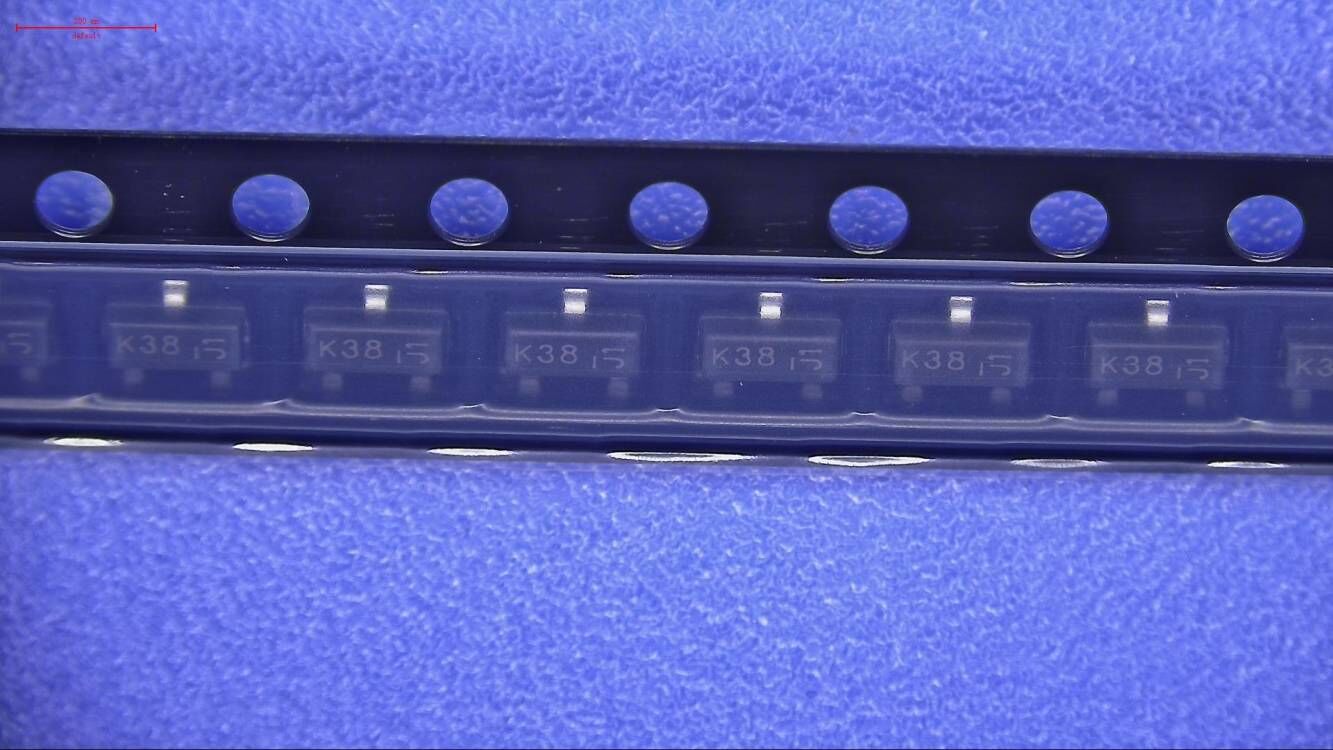

Packaging Info
Packaging Suffix 7
Packaging Tape and Reel
Quantity Of Packaging 3000
Reel Diameter (in) 7
Reel Width (mm) 8.4
Tape Pitch (mm) 4
Tape Width (mm) 8
Feed Hole Pitch (mm) 4
Hole Center to Component Center (mm) 2
Component Orientation Single Pin At Sprocket Hole
Packaging Document Link to Datasheet
Tape Type Embossed
