| BTS3046SDRATMA1 COUNTRY OF ORIGIN |
BTS3046SDRATMA1 PARAMETRIC INFO
|
BTS3046SDRATMA1 PACKAGE INFO
|
BTS3046SDRATMA1 MANUFACTURING INFO
|
BTS3046SDRATMA1 PACKAGING INFO
|

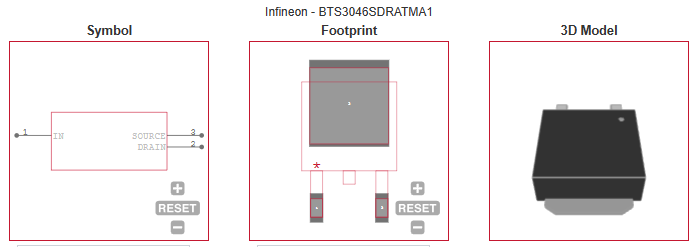

BTS3046SDRATMA1 ECAD MODELS
|

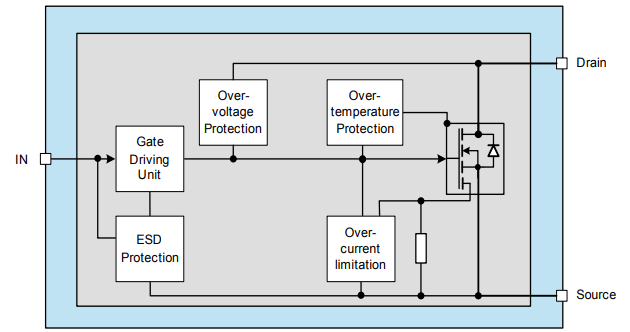

BTS3046SDRATMA1 FUNCTIONAL BLOCK DIAGRAM
|
BTS3046SDRATMA1 APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
| Malaysia |
|
PARAMETRIC INFO
|
| Number of Outputs |
2 |
| Number of Inputs |
2 |
| Maximum Output Current (A) |
4.3(Typ) |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
150 |
| Switch On Resistance (mOhm) |
95 |
| Supplier Temperature Grade |
Automotive |
| Minimum Storage Temperature (°C) |
-55 |
| Maximum Storage Temperature (°C) |
150 |
|
|
PACKAGE INFO
|
| Supplier Package |
DPAK |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
3 |
| Lead Shape |
Gull-wing |
| PCB |
2 |
| Tab |
Tab |
| Pin Pitch (mm) |
2.28 |
| Package Length (mm) |
6.5 |
| Package Width (mm) |
6.22 |
| Package Height (mm) |
2.3 |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
6.5 |
| Package Overall Width (mm) |
9.98 |
| Package Overall Height (mm) |
2.5(Max) |
| Seated Plane Height (mm) |
2.5(Max) |
| Mounting |
Surface Mount |
| Package Material |
Plastic |
| Package Description |
Deca Watt Package |
| Package Family Name |
TO-252 |
| Jedec |
TO-252AA |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
N/A |
|
|

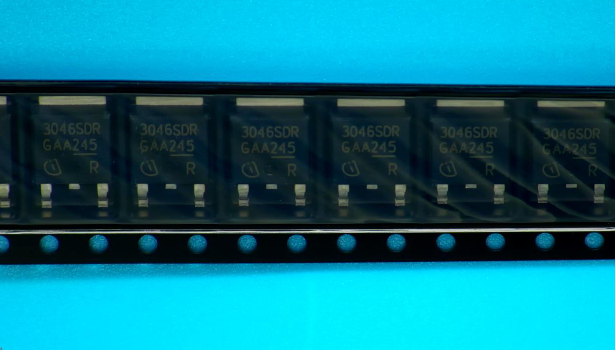

PACKAGING INFO
|
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
2500 |
|
|
ECAD MODELS
|
|
|
FUNCTIONAL BLOCK DIAGRAM
|
|
|
APPLICATIONS
|
• Designed for inductive and lamp loads in automotive and industrial applications
|
• 12V and 24V applications
|
• All types of resitive,inductive and capacitive loads
|
• Replaces discrete circuits
|
|
One-stop supplier of IC products
