• Overload protection
|
• Current limitation
|
• Short circuit protection
|
• Thermal shutdown
|
• Overvoltage protection (including load dump)
|
• Fast demagnetization of inductive loads
|
• Reverse battery protection
|
| • Undervoltage and overvoltage shutdown with auto-restart and hysteresis |
| • Open drain diagnostic output |
| • Open load detection in ON-state |
| • CMOS compatible input |
| • Loss of ground and loss of Vbb protection |
| • Electrostatic discharge (ESD) protection |
| • Green Product (RoHS compliant) |
| • AEC Qualified |
|
| CATALOG |
| BTS426L1 E3062A COUNTRY OF ORIGIN |
BTS426L1 E3062A PARAMETRIC INFO
|
BTS426L1 E3062A PACKAGE INFO
|
BTS426L1 E3062A MANUFACTURING INFO
|
BTS426L1 E3062A PACKAGING INFO
|
BTS426L1 E3062A APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Austria
|
Malaysia
|
|
PARAMETRIC INFO
|
| Number of Outputs |
1 |
| Number of Inputs |
1 |
| Minimum Input Voltage (V) |
-10 |
| Maximum Input Voltage (V) |
16 |
| Maximum Output Current (A) |
16(Typ) |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
150 |
| Switch On Resistance (mOhm) |
50 |
| Maximum Power Dissipation (mW) |
75000 |
|
|

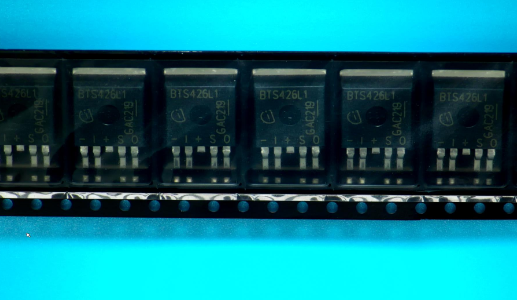

PACKAGE INFO
|
| Supplier Package |
TO-220AB SMD |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
5 |
| Lead Shape |
Gull-wing |
| PCB |
4 |
| Tab |
Tab |
| Pin Pitch (mm) |
1.7 |
| Package Length (mm) |
9.9 |
| Package Width (mm) |
9.2 |
| Package Height (mm) |
4.4 |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
4.5 |
| Mounting |
Surface Mount |
| Package Material |
Plastic |
| Package Family Name |
TO-220 |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
N/A |
| Maximum Reflow Temperature (°C) |
245 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn |
| Under Plating Material |
NiP |
| Terminal Base Material |
Cu Alloy |
|
|
PACKAGING INFO
|
| Packaging Suffix |
A |
| Packaging |
Tape and Reel |
|
|
APPLICATIONS
|
• Compatible power switch with diagnostic feedback for 12 V and 24 V DC grounded loads
|
• All types of resistive, inductive and capacitve loads
|
• Replaces electromechanical relays, fuses and discrete circuits
|
|
