BZX84-C27 Diotec Semiconductor NOW NEXPERIA BZX84-C24 - ZENER D

label:
2025/03/18 39

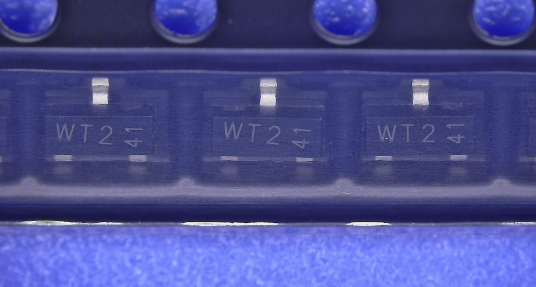

BZX84-C27 Diotec Semiconductor 	NOW NEXPERIA BZX84-C24 - ZENER D


• Total power dissipation: ≤250 mW
• Three tolerance series: ±1 %, ±2 % and approximately ±5 %
• Working voltage range: nominal 2.4 V to 75 V (E24 range)
• Non-repetitive peak reverse power dissipation: ≤ 40 W


CATALOG
BZX84-C27 COUNTRY OF ORIGIN
BZX84-C27 PARAMETRIC INFO
BZX84-C27 PACKAGE INFO
BZX84-C27 MANUFACTURING INFO
BZX84-C27 PACKAGING INFO
BZX84-C27 ECAD MODELS
BZX84-C27 APPLICATIONS


COUNTRY OF ORIGIN
China


PARAMETRIC INFO
Type Voltage Regulator
Configuration Single
Nominal Zener Voltage (V) 27
Polarity No
Maximum Reverse Leakage Current (uA) 0.05
Maximum Zener Impedance (Ohm) 80
Maximum Power Dissipation @ 25C (mW) 250
Maximum Power Dissipation (mW) 250
Typical Voltage Temperature Coefficient 23.35mV/K
Test Current (mA) 2
Maximum Zener Voltage (V) 28.9
Minimum Zener Voltage (V) 25.1
Maximum Forward Voltage (V) 0.9
Maximum Diode Capacitance (pF) 50
Average Rectified Forward Current (A) 0.2
Zener Voltage Tolerance 5%
Minimum Operating Temperature (°C) -55
Maximum Operating Temperature (°C) 150


PACKAGE INFO
Supplier Package SOT-23
Basic Package Type Lead-Frame SMT
Pin Count 3
Lead Shape Gull-wing
PCB 3
Tab N/R
Pin Pitch (mm) 0.95
Package Length (mm) 3(Max)
Package Width (mm) 1.4(Max)
Package Height (mm) 1(Max)
Package Diameter (mm) N/R
Package Overall Length (mm) 3(Max)
Package Overall Width (mm) 2.5(Max)
Package Overall Height (mm) 1.1(Max)
Seated Plane Height (mm) 1.1(Max)
Mounting Surface Mount
Package Weight (g) N/A
Package Material Plastic
Package Description Small Outline Transistor
Package Family Name SOT
Jedec TO-236AB
Package Outline Link to Datasheet
Maximum PACKAGE_DIMENSION_H 1
Minimum PACKAGE_DIMENSION_H N/A
Maximum PACKAGE_DIMENSION_L 3
Minimum PACKAGE_DIMENSION_L 2.8
Maximum PACKAGE_DIMENSION_W 1.4
Minimum PACKAGE_DIMENSION_W 1.2
Maximum Diameter N/R
Minimum Diameter N/R
Maximum Seated_Plane_Height 1.1
Minimum Seated_Plane_Height 0.9


MANUFACTURING INFO
MSL 1
Maximum Reflow Temperature (°C) 260
Reflow Solder Time (Sec) 30
Number of Reflow Cycle 3
Standard N/A
Reflow Temp. Source Link to Datasheet
Maximum Wave Temperature (°C) 260
Wave Solder Time (Sec) 10
Lead Finish(Plating) Sn
Under Plating Material CuAg
Terminal Base Material FeNi Alloy
Number of Wave Cycles 1


PACKAGING INFO
Packaging Document Link to Datasheet


ECAD MODELS



APPLICATIONS
• General regulation functions
