C5750X7S2A106M230KB COUNTRY OF ORIGIN
|
C5750X7S2A106M230KB PARAMETRIC INFO
|
C5750X7S2A106M230KB PACKAGE INFO
|
C5750X7S2A106M230KB MANUFACTURING INFO
|
C5750X7S2A106M230KB PACKAGING INFO
|
|
COUNTRY OF ORIGIN
|
Japan
|
|
PARAMETRIC INFO
|
| Capacitance Value |
10uF |
| Voltage |
100VDC |
| Tolerance |
20% |
| Dielectric |
X7S |
| Technology |
Standard |
| Maximum Operating Temperature (°C) |
125 |
| Case Style |
Ceramic Chip |
| Construction |
Flat |
| Microwave Application |
No |
| Operating Temperature (°C) |
-55 to 125 |
| Minimum Operating Temperature (°C) |
-55 |
| DC Rated Voltage (VDC) |
100 |
| Negative Capacitance Tolerance (%) |
-20 |
| Positive Capacitance Tolerance (%) |
20 |
| Maximum Dissipation Factor (%) |
5 |
| Polarity |
Non Polar |
| Special Features |
Middle Voltage |
| Test Frequency (Hz) |
1K |
| Fixed/Variable |
Fixed |
| Maximum Terminal Width (mm) |
5.4 |
|
|
PACKAGE INFO
|
| Package/Case |
2220 |
| Mounting |
Surface Mount |
| Termination Style |
Pad |
| Terminal Pitch (mm) |
N/R |
| Product Length (mm) |
5.7 |
| Product Depth (mm) |
5 |
| Product Height (mm) |
2.3 |
| Product Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
N/R |
| Product Weight (g) |
N/A |
| Length Tolerance (mm) |
±0.4 |
| Depth Tolerance (mm) |
±0.4 |
| Height Tolerance (mm) |
±0.2 |
| Diameter Tolerance (mm) |
N/R |
| Number of Terminals |
2 |
| Size (mm) |
5.7 X 5 X 2.3 |
| Maximum Product Length (mm) |
6.1 |
| Maximum Product Depth (mm) |
5.4 |
| Maximum Product Height (mm) |
2.5 |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
10 |
| Number of Reflow Cycle |
N/A |
| Standard |
N/A |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
Ni |
| Terminal Base Material |
Cu |
| Number of Wave Cycles |
N/R |
|
|

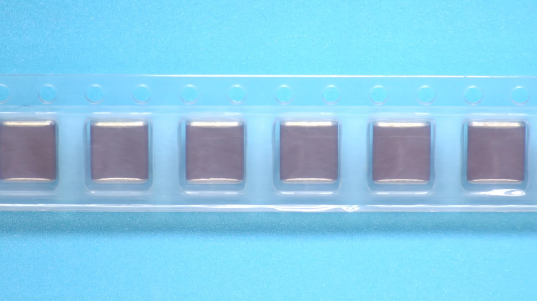

PACKAGING INFO
|
| Packaging Suffix |
K |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
500 |
| Reel Diameter (in) |
7 |
| Reel Width (mm) |
13 |
| Tape Pitch (mm) |
8 |
| Tape Width (mm) |
12 |
| Feed Hole Pitch (mm) |
4 |
| Hole Center to Component Center (mm) |
2 |
| Packaging Document |
Link to Datasheet |
| Tape Material |
Plastic |
|
|
