| ■ RoHS compliant* |
| ■ Working peak voltage 7 V or 12 V |
| ■ ESD protection 30 kV max. |
| ■ Surge protection |
|
| CATALOG |
| CDSOT23-SM712 COUNTRY OF ORIGIN |
| CDSOT23-SM712 PARAMETRIC INFO |
| CDSOT23-SM712 PACKAGE INFO |
| CDSOT23-SM712 MANUFACTURING INFO |
| CDSOT23-SM712 PACKAGING INFO |
| CDSOT23-SM712 ECAD MODELS |
| CDSOT23-SM712 APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| Japan |
| Korea (Republic of) |
| Mexico |
| Philippines |
| Taiwan (Province of China) |
| United Kingdom of Great Britain and Northern Ireland |
| United States of America |
|
| PARAMETRIC INFO |
| Type |
TVS |
| Direction Type |
Bi-Directional |
| Maximum Working Voltage (V) |
12|7 |
| Configuration |
Dual |
| Maximum Clamping Voltage (V) |
26|14 |
| Maximum Leakage Current (uA) |
1|20 |
| Number of Elements per Chip |
2 |
| Test Current (mA) |
1 |
| Peak Pulse Power Dissipation (W) |
400@8/20us |
| Maximum Peak Pulse Current (A) |
17@8/20us |
| Minimum Breakdown Voltage (V) |
13.3|7.5 |
| Minimum Operating Temperature (°C) |
-55 |
| Fail Safe Protection |
No |
| Maximum Operating Temperature (°C) |
150 |
| Minimum Storage Temperature (°C) |
-55 |
| Maximum Storage Temperature (°C) |
150 |
|
| |
| PACKAGE INFO |
| Supplier Package |
SOT-23 |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
3 |
| Lead Shape |
Gull-wing |
| PCB |
3 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.95 |
| Package Length (mm) |
3(Max) |
| Package Width (mm) |
1.4(Max) |
| Package Height (mm) |
1.16(Max) |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
1.17(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
0.008 |
| Package Material |
Plastic |
| Package Description |
Small Outline Transistor |
| Package Family Name |
SOT |
| Jedec |
TO-236 |
|
| |
| MANUFACTURING INFO |
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
N/A |
| Standard |
N/A |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
| Number of Wave Cycles |
N/R |
|
| |

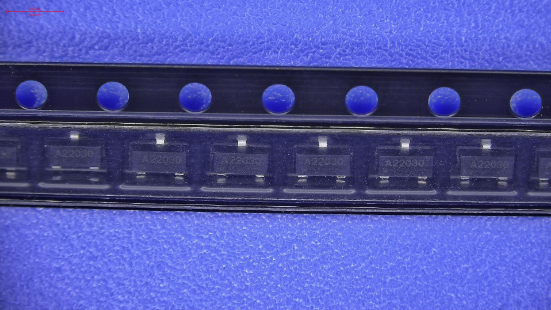

| PACKAGING INFO |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
3000 |
| Reel Diameter (in) |
7 |
| Tape Pitch (mm) |
4 |
| Tape Width (mm) |
8 |
| Feed Hole Pitch (mm) |
4 |
| Hole Center to Component Center (mm) |
2 |
| Component Orientation |
Single Pin At Sprocket Hole |
| Packaging Document |
Link to Datasheet |
| Tape Type |
Embossed |
|
| |

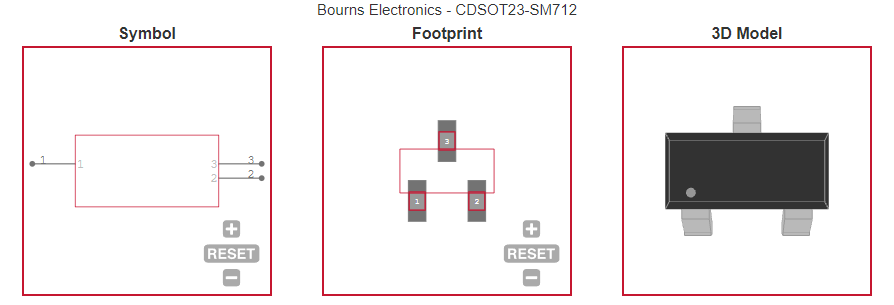

| ECAD MODELS |
 |
|
| APPLICATIONS |
| ■ Wireless systems |
| ■ Network protection |
| ■ Portable electronics |
| ■ RS-485 port protection |
|
