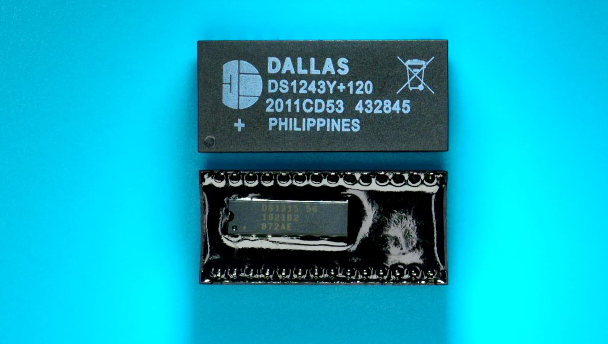

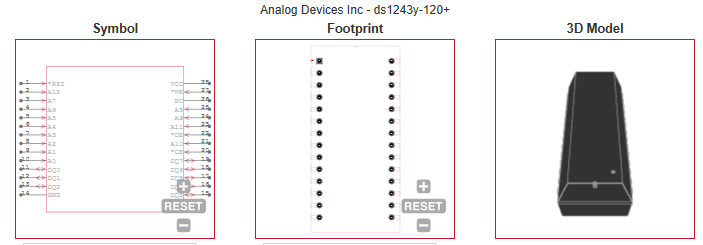

DS1243Y-120+ Analog Devices / Maxim Integrated IC RTC PHANTOM PAR 28-DIP

2023/09/26 380

■ Real-Time Clock Keeps Track of Hundredths of Seconds, Seconds, Minutes, Hours, Days, Date of the Month, Months, and Years

■ 8K x 8 NV SRAM Directly Replaces Volatile Static RAM or EEPROM

■ Embedded Lithium Energy Cell Maintains Calendar Operation and Retains RAM Data

■ Watch Function is Transparent to RAM Operation

■ Automatic Leap Year Compensation Valid Up to 2100

CATALOG

Philippines

Date Format	DW:DM:M:Y
Time Format	HH:MM:SS:hh
User RAM (byte)	8192
Bus Type	Phantom Clock\|Parallel
Function	Clock/Calendar/NV Timekeeping RAM
Maximum Access Time (ns)	120
Minimum Operating Temperature (°C)	0
Maximum Operating Temperature (°C)	70
Supplier Temperature Grade	Commercial
Minimum Operating Supply Voltage (V)	4.5
Typical Operating Supply Voltage (V)	5
Maximum Operating Supply Voltage (V)	5.5

Supplier Package	EDIP
Basic Package Type	Through Hole
Pin Count	28
Lead Shape	Through Hole
PCB	28
Tab	N/R
Pin Pitch (mm)	2.79(Max)
Package Length (mm)	39.37(Max)
Package Width (mm)	18.29(Max)
Package Height (mm)	10.67(Max)
Package Diameter (mm)	N/R
Seated Plane Height (mm)	10.67(Max)
Mounting	Through Hole
Package Material	Plastic
Package Description	Encapsulated Dual In Line Package
Package Family Name	DIP
Jedec	N/A

MSL	N/R
Maximum Reflow Temperature (°C)	N/R
Reflow Solder Time (Sec)	N/R
Maximum Wave Temperature (°C)	260
Wave Solder Time (Sec)	10
Lead Finish(Plating)	Matte Sn annealed
Under Plating Material	N/A
Terminal Base Material	Cu

Packaging	Tube
Quantity Of Packaging	12
