ES1DHE3_A/H VISHAY Surface-Mount Ultrafast Plastic Rectifier

Type	Switching Diode
Configuration	Single
Peak Reverse Repetitive Voltage (V)	200
Maximum DC Reverse Voltage (V)	200
Maximum Continuous Forward Current (A)	1
Average Rectified Forward Current (A)	1
Typical Junction Capacitance (pF)	10
Typical Reverse Recovery Charge (nC)	10(Max)
Speed	Ultra Fast Recovery Rectifier
Maximum Junction Ambient Thermal Resistance	85°C/W(Typ)
Peak Forward Voltage (V)	0.92
Maximum RMS Reverse Voltage (V)	140
Peak Non-Repetitive Surge Current (A)	30
Peak Reverse Current (uA)	5
Peak Reverse Recovery Time (ns)	15
Operating Junction Temperature (°C)	-55 to 150
Minimum Storage Temperature (°C)	-55
Maximum Storage Temperature (°C)	150
Minimum Operating Temperature (°C)	-55
Maximum Operating Temperature (°C)	150
Supplier Temperature Grade	Automotive

PACKAGE INFO

Supplier Package	SMA
Basic Package Type	Lead-Frame SMT
Pin Count	2
Lead Shape	J-Lead
PCB	2
Tab	N/R
Pin Pitch (mm)	N/R
Package Length (mm)	4.5(Max)
Package Width (mm)	2.79(Max)
Package Height (mm)	2.09(Max)
Package Diameter (mm)	N/R
Seated Plane Height (mm)	2.29(Max)
Mounting	Surface Mount
Package Weight (g)	0.064
Package Material	Plastic
Package Description	SMD Plastic Package
Package Family Name	DO-214-AC
Jedec	DO-214AC
Package Outline	Link to Datasheet

MANUFACTURING INFO

MSL	1
Maximum Reflow Temperature (°C)	260
Reflow Solder Time (Sec)	30
Number of Reflow Cycle	3
Maximum Wave Temperature (°C)	270
Wave Solder Time (Sec)	7
Wave Temp. Source	Link to Datasheet
Lead Finish(Plating)	Matte Sn
Under Plating Material	N/A
Terminal Base Material	Cu

PACKAGING INFO

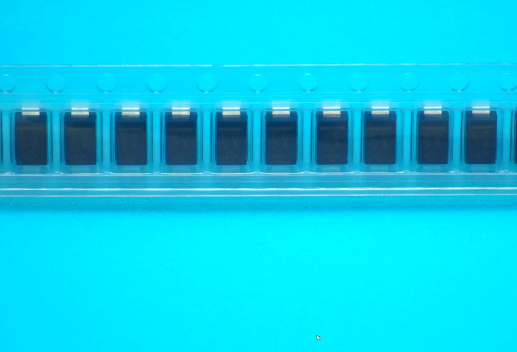

Packaging	Tape and Reel
Quantity Of Packaging	1800
Packaging Document	Link to Datasheet

APPLICATIONS

For use in high frequency rectification and freewheeling application in switching mode converters and inverters for consumer, computer, automotive and telecommunication.
