• Passive I/Q mixer
|
• RF and LO range: 2.5 GHz to 8.5 GHz
|
• Wide IF range: dc to 4 GHz
|
• Single-ended RF, LO, and IF
|
• Conversion loss (downconverter): 9 dB (typical)
|
• Image rejection (downconverter): 25 dBc (typical)
|
• SSB noise figure (downconverter): 11.5 dB (typical)
|
• Input IP3 (downconverter): 20 dBm (typical)
|
• Input P1dB compression point (downconverter): 13 dBm (typical)
|
• Input IP2 (downconverter): 58 dBm (typical)
|
|
| CATALOG |
HMC8193LC4TR COUNTRY OF ORIGIN
|
HMC8193LC4TR PARAMETRIC INFO
|
HMC8193LC4TR PACKAGE INFO
|
HMC8193LC4TR MANUFACTURING INFO
|
HMC8193LC4TR PACKAGING INFO
|
HMC8193LC4TR ECAD MODELS
|
HMC8193LC4TR FUNCTIONAL BLOCK DIAGRAM
|
HMC8193LC4TR APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
United States of America
|
|
PARAMETRIC INFO
|
| Maximum Input Frequency (MHz) |
8500 |
| Maximum Output Frequency (MHz) |
3500 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Minimum Input Frequency (MHz) |
2500 |
| Minimum Output Frequency (MHz) |
0 |
| Maximum Conversion Loss (dB) |
10 |
| Typical Third Order Input Intercept Point (dBm) |
21 |
| Typical LO/RF Isolation (dB) |
45 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
|
|
PACKAGE INFO
|
| Supplier Package |
CLLCC EP |
| Pin Count |
24 |
| PCB |
24 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.5 |
| Package Length (mm) |
3.9 |
| Package Width (mm) |
3.9 |
| Package Height (mm) |
0.9 |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
0.9 |
| Mounting |
Surface Mount |
| Package Material |
Ceramic |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
3 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Lead Finish(Plating) |
Au |
| Under Plating Material |
Ni |
|
|

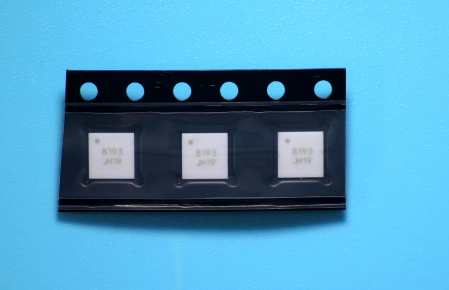

PACKAGING INFO
|
| Packaging Suffix |
TR |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
100 |
|
|

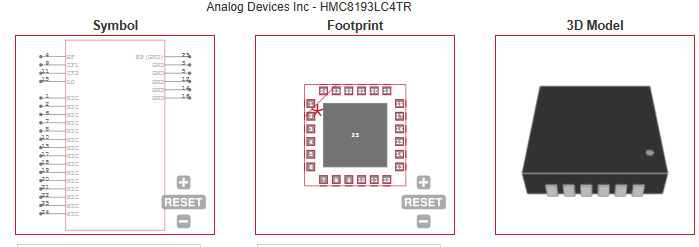

| ECAD MODELS |
|
|

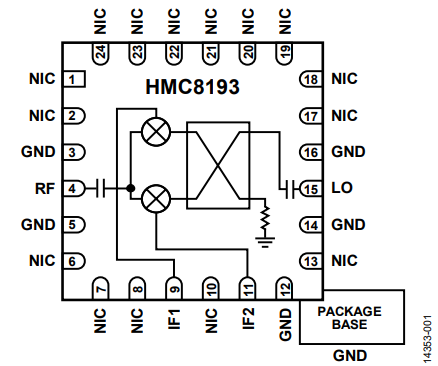

FUNCTIONAL BLOCK DIAGRAM
|
|
|
APPLICATIONS
|
• Test and measurement instrumentation
|
• Military, aerospace, and radar
|
• Direct conversion receivers
|
|
