• Programmable Output Voltage to 36 V
|
• Low Dynamic Output Impedance: 0.2 (Typical)
|
• Sink Current Capability: 1.0 to 100 mA
|
• Equivalent Full−Range Temperature Coefficient of 50 ppm/°C
(Typical)
|
• Temperature Compensated for Operation Over Full Rated
Operating Temperature Range
|
• Low Output Noise Voltage
|
• Fast Turn−on Response
|
|
| CATALOG |

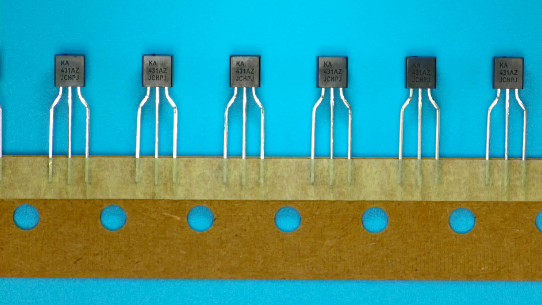

KA431AZTA COUNTRY OF ORIGIN
|
KA431AZTA PARAMETRIC INFO
|
KA431AZTA PACKAGE INFO
|
KA431AZTA MANUFACTURING INFO
|
KA431AZTA PACKAGING INFO
|
KA431AZTA ECAD MODELS
|
|
COUNTRY OF ORIGIN
|
China
|
India
|
Korea (Republic of)
|
|
PARAMETRIC INFO
|
| Topology |
Shunt |
| Reference Type |
Adjustable |
| Output Voltage (V) |
2.495 to 36 |
| Initial Accuracy |
1% |
| Minimum Operating Temperature (°C) |
-25 |
| Maximum Operating Temperature (°C) |
85 |
| Maximum Input Voltage (V) |
37 |
| Maximum Output Current (mA) |
100 |
| Maximum Temperature Coefficient |
50ppm/°C(Typ) |
|
|
PACKAGE INFO
|
| Supplier Package |
TO-92 |
| Basic Package Type |
Through Hole |
| Pin Count |
3 |
| Lead Shape |
Through Hole |
| PCB |
3 |
| Tab |
N/R |
| Pin Pitch (mm) |
2.8(Max) |
| Package Length (mm) |
5.2(Max) |
| Package Width (mm) |
4.19(Max) |
| Package Height (mm) |
5.33(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
5.2(Max) |
| Package Overall Width (mm) |
4.19(Max) |
| Package Overall Height (mm) |
8.77(Max) |
| Seated Plane Height (mm) |
8.77(Max) |
| Mounting |
Through Hole |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Plastic Header Style Package |
| Package Family Name |
TO |
| Jedec |
TO-92 |
|
|
MANUFACTURING INFO
|
| MSL |
N/R |
| Maximum Reflow Temperature (°C) |
N/R |
| Reflow Solder Time (Sec) |
N/R |
| Maximum Wave Temperature (°C) |
260 |
| Wave Solder Time (Sec) |
10 |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
|
|
PACKAGING INFO
|
| Packaging Suffix |
TA |
| Packaging |
Fan-Fold |
| Quantity Of Packaging |
2000 |
|
|
ECAD MODELS
|
|
|
