LT3008ETS8#TRPBF Analog Devices IC REG LIN POS ADJ 20MA TSOT23-8

label:
2024/01/25 298


• Ultralow Quiescent Current: 3μA
• Input Voltage Range: 2.0V to 45V
• Output Current: 20mA
• Dropout Voltage: 300mV   
• Adjustable Output (VADJ = VOUT(MIN) = 600mV)
• Fixed Output Voltages: 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, 5V
• Output Tolerance: ±2% Over Load, Line and Temperature
• Stable with Low ESR, Ceramic Output Capacitors (2.2μF Minimum)
• Shutdown Current: <1μA
• Current Limit Protection
• Reverse-Battery Protection
• Thermal Limit Protection
• TSOT-23 and 2mm × 2mm DFN Packages


CATALOG
LT3008ETS8#TRPBF COUNTRY OF ORIGIN
LT3008ETS8#TRPBF PARAMETRIC INFO
LT3008ETS8#TRPBF PACKAGE INFO
LT3008ETS8#TRPBF MANUFACTURING INFO
LT3008ETS8#TRPBF PACKAGING INFO
LT3008ETS8#TRPBF ECAD MODELS
LT3008ETS8#TRPBF APPLICATIONS


COUNTRY OF ORIGIN
Malaysia


PARAMETRIC INFO
Type LDO
Number of Outputs 1
Maximum Output Current (A) 0.02
Minimum Operating Temperature (°C) -40
Maximum Operating Temperature (°C) 125
Output Type Adjustable
Output Voltage Range (V) <1.8|1.8 to 10|10 to 20|20 to 50
Junction to Ambient 85°C/W
Polarity Positive
Special Features Current Limit|Reverse Battery Protection|Reverse Current Protection|Thermal Protection
Load Regulation 5mV
Line Regulation 3mV
Maximum Quiescent Current (mA) 0.006
Maximum Dropout Voltage @ Current (V) 0.18@100uA|0.25@1mA|0.34@10mA|0.365@20mA
Minimum Input Voltage (V) 2
Maximum Input Voltage (V) 45
Output Voltage (V) 0.6 to 44.5
Typical Quiescent Current (mA) 0.003
Typical Dropout Voltage @ Current (V) 0.115@100uA|0.17@1mA|0.27@10mA|0.3@20mA
Reference Voltage (V) 0.6
Accuracy (%) ±2
Supplier Temperature Grade Extended
Minimum Storage Temperature (°C) -65
Maximum Storage Temperature (°C) 150
Typical PSRR (dB) 70
Typical Output Capacitance (uF) 2.2(Min)
Typical Output Noise Voltage (uVrms) 92
Output Capacitor Type Ceramic

PACKAGE INFO
Supplier Package TSOT-23
Basic Package Type Lead-Frame SMT
Pin Count 8
Lead Shape Gull-wing
PCB 8
Tab N/R
Pin Pitch (mm) 0.65
Package Length (mm) 2.9
Package Width (mm) 1.75(Max)
Package Height (mm) 0.9(Max)
Package Diameter (mm) N/R
Package Overall Length (mm) 2.9
Package Overall Width (mm) 2.8
Package Overall Height (mm) 1(Max)
Seated Plane Height (mm) 1(Max)
Mounting Surface Mount
Package Weight (g) N/A
Package Material Plastic
Package Description Thin Small Outline Transistor
Package Family Name SOT
Jedec MO-193

MANUFACTURING INFO
MSL 1
Maximum Reflow Temperature (°C) 260
Reflow Solder Time (Sec) 30
Number of Reflow Cycle 3
Standard J-STD-020D
Reflow Temp. Source Link to Datasheet
Maximum Wave Temperature (°C) 260
Wave Solder Time (Sec) 10
Wave Temp. Source Link to Datasheet
Lead Finish(Plating) Matte Sn annealed
Under Plating Material Ag
Terminal Base Material Cu Alloy
Number of Wave Cycles 2

PACKAGING INFO
Packaging Suffix TR
Packaging Tape and Reel
Quantity Of Packaging 2500
Reel Diameter (in) 7
Reel Width (mm) 8.4
Tape Pitch (mm) 4
Tape Width (mm) 8
Feed Hole Pitch (mm) 4
Hole Center to Component Center (mm) 2
Component Orientation Q2
Packaging Document Link to Datasheet
Tape Type Embossed

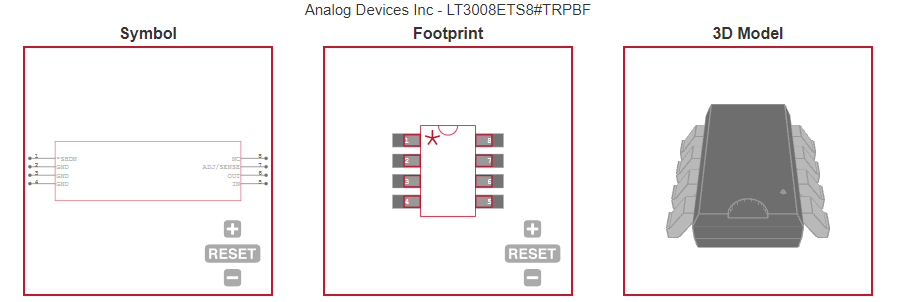

ECAD MODELS


APPLICATIONS
• Automotive
• Low Current Battery-Powered Systems  
• Keep-Alive Power Supplies
• Remote Monitoring
• Utility Meters
• Low Power Industrial Applications
