MA4AGSW2 MACOM SP2T REFLECTIVE ALGAAS SWITCH

2023/11/10 352

• Ultra Broad Bandwidth: 50 MHz to 50 GHz

• Functional Bandwidth: 50 MHz to 70 GHz

• Insertion Loss: 0.7 dB

• Isolation: 33 dB @ 50 GHz

• Low Current Consumption: -10 mA for Low Loss State +10 mA for Isolation State

• MACOMs Unique AlGaAs Hetero-Junction Anode Technology

• Silicon Nitride Passivation

• Polymer Scratch Protection

• RoHS Compliant

CATALOG

Switch Type	SPDT
Number of Switches	1
Switch Configuration	Single SPDT
Frequency Band (MHz)	50 to 50000
Minimum Operating Temperature (°C)	-55
Maximum Operating Temperature (°C)	125
Maximum Insertion Loss (dB)	0.9
Maximum Frequency (MHz)	50000
Technology	AlGaAs
Switching Speed (ns)	20(Typ)
Minimum Isolation Voltage (dB)	28
Minimum Storage Temperature (°C)	-55
Maximum Storage Temperature (°C)	150

Supplier Package	Chip
Basic Package Type	N/A
Pin Count	3
Lead Shape	N/A
PCB	3
Tab	N/R
Pin Pitch (mm)	N/R
Package Length (mm)	1.25
Package Width (mm)	0.78
Package Height (mm)	0.1
Package Diameter (mm)	N/R
Seated Plane Height (mm)	N/R
Mounting	N/R
Package Weight (g)	N/A
Package Material	N/A
Package Description	An Unpackaged, Fully Tested Integrated Circuit Chip
Package Family Name	N/A
Jedec	N/A

MSL	N/R
Maximum Reflow Temperature (°C)	N/R
Reflow Solder Time (Sec)	N/R
Number of Reflow Cycle	N/R
Standard	N/R
Maximum Wave Temperature (°C)	N/R
Wave Solder Time (Sec)	N/R
Lead Finish(Plating)	N/A
Under Plating Material	N/A
Terminal Base Material	N/A
Number of Wave Cycles	N/R

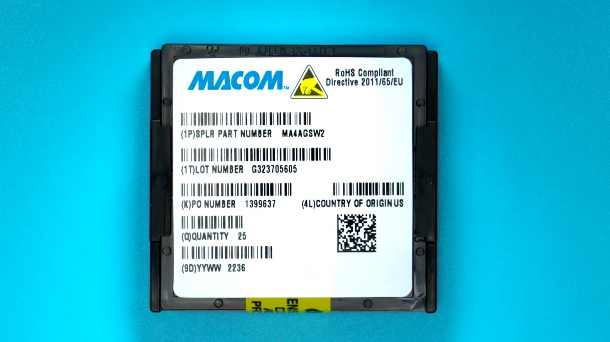

Packaging	Waffle
Packaging Document	Link to Datasheet

• Aerospace & Defense

• ISM
