MA4AGSW4 MACOM SP4T REFLECTIVE ALGAAS SWITCH

2023/11/22 284

• Ultra Broad Bandwidth: 50 MHz to 50 GHz

• Insertion Loss: 0.7 dB

• Isolation: 31 dB @ 50 GHz

• Low Current Consumption: -10 mA for Low Loss State +10 mA for Isolation State

• MACOMs Unique AlGaAs Hetero-Junction Anode Technology

• Silicon Nitride Passivation

• Internal Short-Circuit Current Limit

• Mirror Image Insertion Protection

• Polymer Scratch Protection

• RoHS* Compliant

CATALOG

Type	Switch
Configuration	Octal
Maximum Reverse Voltage (V)	25
Frequency Range	VHF\|UHF\|SHF\|EHF
Minimum Storage Temperature (°C)	-55
Maximum Storage Temperature (°C)	150
Minimum Operating Temperature (°C)	-55
Maximum Operating Temperature (°C)	125

Supplier Package	Chip
Basic Package Type	N/A
Pin Count	5
Lead Shape	N/A
PCB	5
Tab	N/R
Pin Pitch (mm)	N/R
Package Length (mm)	1.7
Package Width (mm)	1.52
Package Height (mm)	0.1
Package Diameter (mm)	N/R
Seated Plane Height (mm)	0.1
Mounting	N/R
Package Weight (g)	N/A
Package Material	N/A
Package Description	An Unpackaged, Fully Tested Integrated Circuit Chip
Package Family Name	N/A
Jedec	N/A

MSL	N/R
Maximum Reflow Temperature (°C)	N/A
Reflow Solder Time (Sec)	N/A
Number of Reflow Cycle	N/A
Standard	N/A
Reflow Temp. Source	Link to Datasheet
Maximum Wave Temperature (°C)	N/A
Wave Solder Time (Sec)	N/A
Wave Temp. Source	Link to Datasheet
Lead Finish(Plating)	N/A
Under Plating Material	N/A
Terminal Base Material	N/A
Number of Wave Cycles	N/A

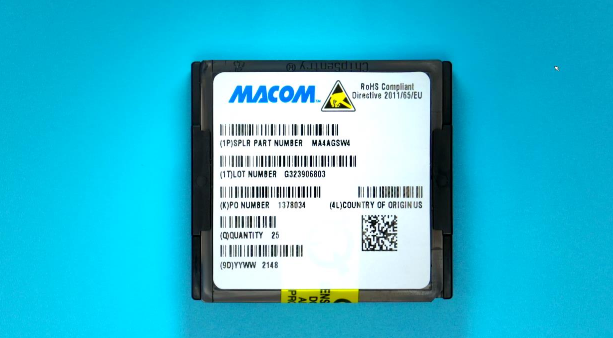

Packaging	Waffle
Packaging Document	Link to Datasheet

• Aerospace & Defense

• ISM
