• The i.MX 6Solo supports single Arm Cortex-A9 MPCore (with TrustZone) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
• The i.MX 6DualLite supports dual Arm Cortex-A9 MPCore (with TrustZone) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
• The core configuration is symmetric, where each core includes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
• External memory interfaces: The i.MX 6Solo/6DualLite processors support latest, high volume, cost effective handheld DRAM, NOR, and NAND Flash memory standards. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
• Displays—Total of four interfaces available. Total raw pixel rate of all interfaces is up to 450 Mpixels/sec, 24 bpp. Up to two interfaces may be active in parallel. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
• Camera sensors: — Two parallel Camera ports (up to 20 bit and up to 240 MHz peak) — MIPI CSI-2 Serial port, supporting from 80 Mbps to 1 Gbps speed per data lane. The CSI-2 Receiver core can manage one clock lane and up to two data lanes. Each i.MX 6Solo/6DualLite processor has two lanes. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
• Expansion cards:
— Four MMC/SD/SDIO card ports all supporting: – 1-bit or 4-bit transfer mode specifications for SD and SDIO cards up to UHS-I SDR-104 mode (104 MB/s max) – 1-bit, 4-bit, or 8-bit transfer mode specifications for MMC cards up to 52 MHz in both SDR and DDR modes (104 MB/s max) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
• USB: — One high speed (HS) USB 2.0 OTG (Up to 480 Mbps), with integrated HS USB Phy — Three USB 2.0 (480 Mbps) hosts: – One HS host with integrated High Speed Phy – Two HS hosts with integrated HS-IC USB (High Speed Inter-Chip USB) Phy |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
• Expansion PCI Express port (PCIe) v2.0 one lane — PCI Express (Gen 2.0) dual mode complex, supporting Root complex operations and Endpoint operations. Uses x1 PHY configuration. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
CATALOG | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

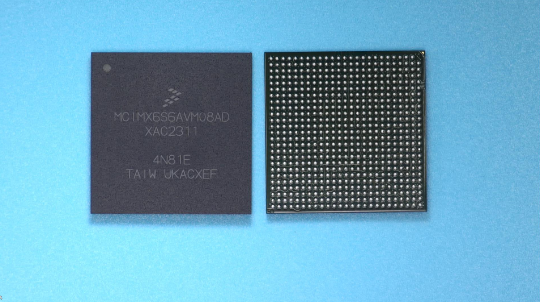

MCIMX6S6AVM08AD COUNTRY OF ORIGIN | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
MCIMX6S6AVM08AD PARAMETRIC INFO | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
MCIMX6S6AVM08AD PACKAGE INFO | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
MCIMX6S6AVM08AD PACKAGING INFO | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

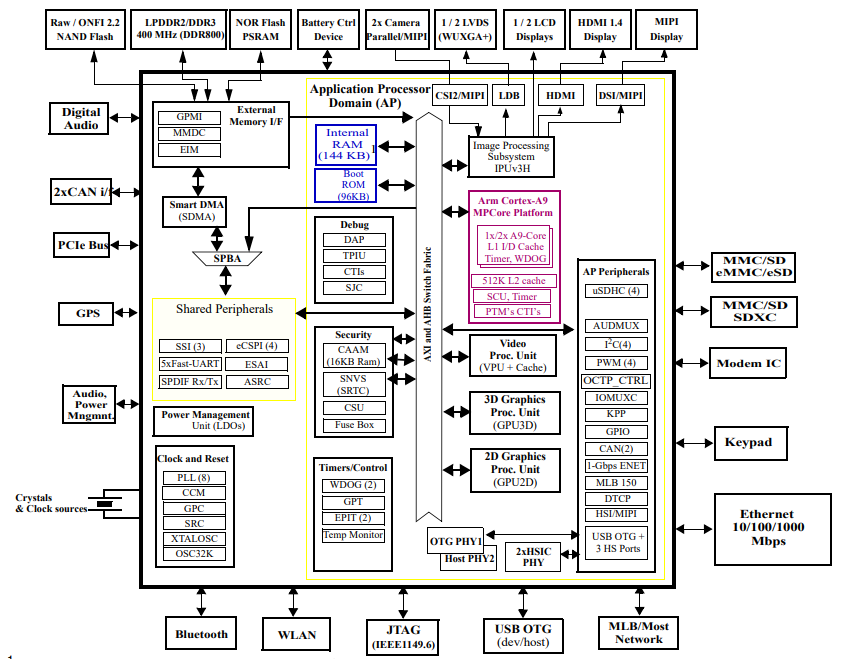

MCIMX6S6AVM08AD FUNCTIONAL BLOCK DIAGRAM | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
