| • Designed to operate over the range of 4.5 V VPWR 36 V |
| • Quad ignition IGBT or MOSFET gate pre-driver with parallel/SPI and/or PWM
control |
| • Quad injector driver with parallel/SPI control |
| • Interfaces directly to MCU using 3.3 V/5.0 V SPI protocol |
| • Injector driver current limit - 4.5 A max. |
| • Independent fault protection and diagnostics |
| • VPWR standby current 10 A max. |
|
| CATALOG |
| MCZ33810EKR2 COUNTRY OF ORIGIN |
| MCZ33810EKR2 PACKAGE INFO |
| MCZ33810EKR2 MANUFACTURING INFO |
| MCZ33810EKR2 PACKAGING INFO |
| MCZ33810EKR2 ECAD MODELS |
| MCZ33810EKR2 FUNCTIONAL BLOCK DIAGRAM |
| MCZ33810EKR2 APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| China |
|
| PACKAGE INFO |
| Supplier Package |
SOIC W EP |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
32 |
| Lead Shape |
Gull-wing |
| PCB |
32 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.65 |
| Package Length (mm) |
11.1(Max) |
| Package Width (mm) |
7.6(Max) |
| Package Height (mm) |
2.35(Max) |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
2.45(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
0.4828 |
| Package Material |
Plastic |
| Package Description |
Small Outline IC Wide Body, Exposed Pad |
| Package Family Name |
SO |
| Package Outline |
Link to Datasheet |
|
| |
| MANUFACTURING INFO |
| MSL |
3 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
40 |
| Number of Reflow Cycle |
3 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
|

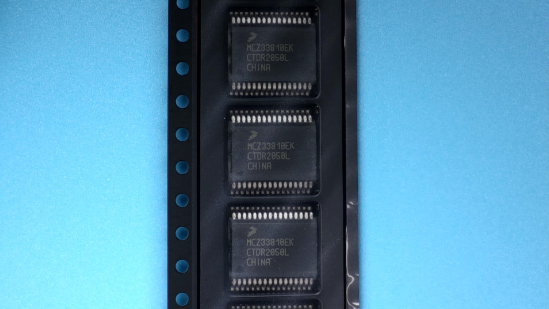

| |
| PACKAGING INFO |
| Packaging Suffix |
R2 |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
1000 |
| Packaging Document |
Link to Datasheet |
|
| |
| ECAD MODELS |
|
|

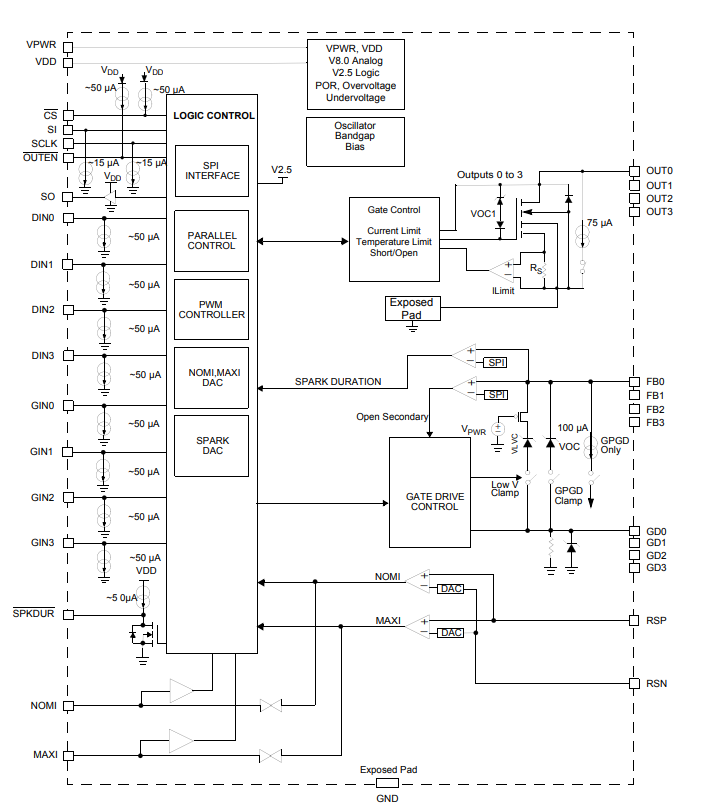

| FUNCTIONAL BLOCK DIAGRAM |
 |
|
| APPLICATIONS |
| • Automotive |
| • Motorcycle engine control unit (ECU) and small
engine control |
| • PSI5 airbag system |
| • Central gateway/in-vehicle networking |
| • Braking and stability control |
| • Gasoline engine management |
| • Hybrid electric vehicle (HEV) inverter controller |
|
