MMBT3904-TP Micro Commercial Components (MCC) TRANS NPN 40V 0.2A SOT23

label:
2024/04/3 274


CATALOG
MMBT3904-TP COUNTRY OF ORIGIN
MMBT3904-TP PARAMETRIC INFO
MMBT3904-TP PACKAGE INFO
MMBT3904-TP MANUFACTURING INFO
MMBT3904-TP PACKAGING INFO
MMBT3904-TP EACD MODELS


COUNTRY OF ORIGIN
China



PARAMETRIC INFO
type NPN
Configuration Single
Maximum Collector-Emitter Voltage (V) 40
Maximum Collector Base Voltage (V) 60
Maximum Emitter Base Voltage (V) 6
Maximum DC Collector Current (A) 0.2
Maximum Power Dissipation (mW) 350
Typical Input Capacity (pF) 8(Max)
Typical Output Capacitance (pF) 4(Max)
Maximum Junction Ambient Thermal Resistance 357°C/W
Maximum Junction Case Thermal Resistance 185°C/W
Maximum Noise Figure (dB) 5
Maximum Delay Time (ns) 35
Maximum Rise Time (ns) 35
Maximum Storage Time (ns) 200
Maximum Fall Time (ns) 50
Operating Junction Temperature (°C) -55 to 150
Maximum Collector Cut-Off Current (nA) 50
Maximum Collector-Emitter Saturation Voltage (V) 0.2@1mA@10mA|0.3@5mA@50mA
Maximum Base Emitter Saturation Voltage (V) 0.85@1mA@10mA|0.95@5mA@50mA
Category Bipolar Small Signal
Minimum DC Current Gain 40@0.1mA@1V|70@1mA@1V|100@10mA@1V|60@50mA@1V|30@100mA@1V
Number of Elements per Chip 1
Maximum Transition Frequency (MHz) 300(Min)
Minimum Storage Temperature (°C) -55
Maximum Storage Temperature (°C) 150
Minimum Operating Temperature (°C) -55
Maximum Operating Temperature (°C) 150


PACKAGE INFO
Supplier packaging SOT-23
Basic package type Lead-Frame SMT
Number of pins 3
Pin shape Gull-wing
PCB 3
ears N/R
Pin spacing (mm) 1.03(Max)
Package length (mm) 3.04(Max)
Package width (mm) 1.4(Max)
Package height (mm) 1.12(Max)
Package diameter (mm) N/R
Mounting surface height (mm) 1.22(Max)
Install Surface Mount
Package weight (g) not applicable
Packaging materials Plastic
package instruction Small Outline Transistor
Package series name SOT
JEDEC TO-236AA
Package outline Link to datasheet


MANUFACTURING INFO
MSL 1
Maximum reflow temperature (°C) 260
Reflow soldering time (seconds) 10
Number of reflow cycles 3
standard not applicable
Maximum wave soldering temperature (°C) N/R
Wave soldering time (seconds) N/R
Lead Finish(Plating) Matte Sn annealed
Plating materials not applicable
Terminal Base Material Cu Alloy
Number of Wave Cycles N/R


PACKAGING INFO
Packaging Suffix TP

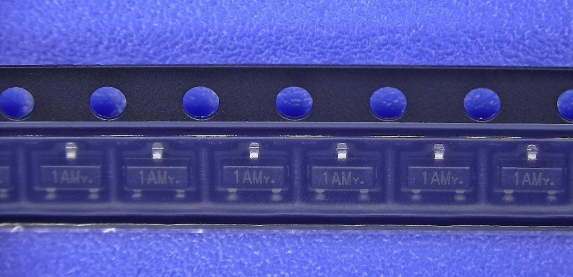

Package Tape and reel packaging
Packing quantity 3000
Reel Diameter (in) 7
Reel Width (mm) 8.4
Tape Pitch (mm) 2|4
Tape Width (mm) 8
Feed Hole Pitch (mm) 4
Hole Center to Component Center (mm) 2
Component Orientation Single Pin At Sprocket Hole
packaging type file Link to datasheet
Tape Type Embossed

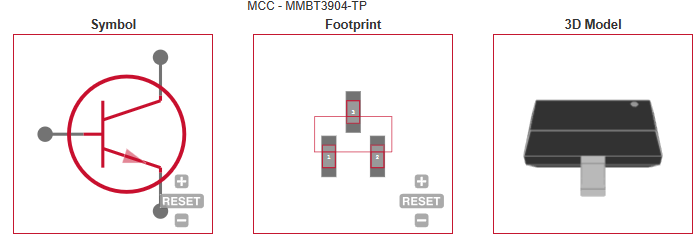

ECAD MODELS
