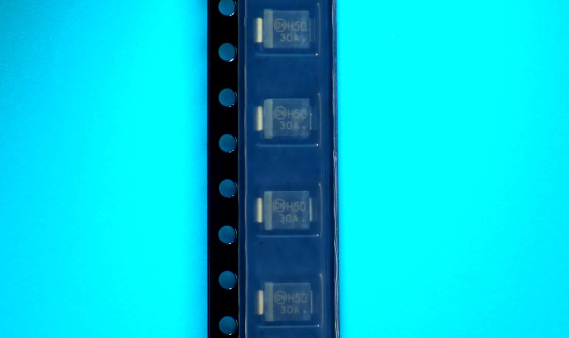

P6SMB30AT3G Littelfuse TVS DIODE 25.6V 41.4V SMB

label:
2023/08/24 491



CATALOG
P6SMB30AT3G COUNTRY OF ORIGIN
P6SMB30AT3G LIFECYCLE
P6SMB30AT3G PARAMETRIC INFO
P6SMB30AT3G PACKAGE INFO
P6SMB30AT3G PACKAGING INFO


COUNTRY OF ORIGIN
China
Malaysia
Viet Nam


LIFECYCLE
Obsolete
Dec 31,2017


PARAMETRIC INFO
Configuration Single
Direction Type Uni-Directional
Maximum Reverse Stand-Off Voltage (V) 25.6
Minimum Breakdown Voltage (V) 28.5
Maximum Clamping Voltage (V) 41.4
Maximum Reverse Leakage Current (uA) 5
Maximum Breakdown Voltage (V) 31.5
Number of Elements per Chip 1
Maximum Peak Pulse Current (A) 14.4
Test Current (mA) 1
Operating Junction Temperature (°C) -65 to 150
Minimum Storage Temperature (°C) -65
Maximum Storage Temperature (°C) 150
Maximum Power Dissipation (mW) 550
Maximum Forward Voltage (V) 3.5
Peak Pulse Power Dissipation (W) 600
Minimum Operating Temperature (°C) -65
Maximum Operating Temperature (°C) 150
Peak Forward Surge Current (A) 100


PACKAGE INFO
Supplier Package SMB
Basic Package Type Lead-Frame SMT
Pin Count 2
Lead Shape J-Lead
PCB 2
Tab N/R
Pin Pitch (mm) N/R
Package Length (mm) 4.32
Package Width (mm) 3.56
Package Height (mm) 2.2
Package Diameter (mm) N/R
Seated Plane Height (mm) 2.3
Mounting Surface Mount
Package Material Plastic
Package Description SMD Plastic Package
Package Family Name DO-214-AA
Jedec DO-214AA
Package Outline Link to Datasheet


PACKAGING INFO
Packaging Suffix T3
Packaging Tape and Reel
Quantity Of Packaging 2500
Packaging Document Link to Datasheet
