| • One very small SOT323 package to protect two CAN bus lines |
| • Low clamping voltage VCL = 35 V at IPP =1A |
| • Typical diode capacitance matching Cd/Cd = 0.1 % |
| • ESD protection up to 23 kV; IEC 61000-4-2, level 4 |
| • IEC 61000-4-5 (surge); IPPM = 3 A at tp = 8/20 s |
| • AEC-Q101 qualified |
|
| CATALOG |
| PESD1CAN-UX COUNTRY OF ORIGIN |
| PESD1CAN-UX PARAMETRIC INFO |
| PESD1CAN-UX PACKAGE INFO |
| PESD1CAN-UX MANUFACTURING INFO |
| PESD1CAN-UX PACKAGING INFO |
| PESD1CAN-UX APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| Germany |
| Malaysia |
|
| PARAMETRIC INFO |
| Type |
TVS |
| Direction Type |
Bi-Directional |
| Maximum Working Voltage (V) |
24 |
| Configuration |
Dual |
| Capacitance Value (pF) |
12 |
| Maximum Clamping Voltage (V) |
50 |
| Maximum Leakage Current (uA) |
0.05 |
| Number of Elements per Chip |
2 |
| Peak Pulse Power Dissipation (W) |
150 |
| Minimum Operating Temperature (°C) |
-55 |
| Maximum Operating Temperature (°C) |
150 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
| Supplier Temperature Grade |
Automotive |
|
| |
| Package Info |
| Supplier Package |
SC-70 |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
3 |
| Lead Shape |
Gull-wing |
| PCB |
3 |
| Tab |
N/R |
| Package Length (mm) |
2.2(Max) |
| Package Width (mm) |
1.35(Max) |
| Package Height (mm) |
1(Max) |
| Package Diameter (mm) |
N/R |
| Mounting |
Surface Mount |
| Package Description |
Small Outline Transistor |
| Package Family Name |
SOT |
| Jedec |
MO-203AA |
| Package Outline |
Link to Datasheet |
|
| |
| MANUFACTURING INFO |
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Reflow Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Sn |
| Under Plating Material |
CuAg |
| Terminal Base Material |
FeNi Alloy |
|
| |

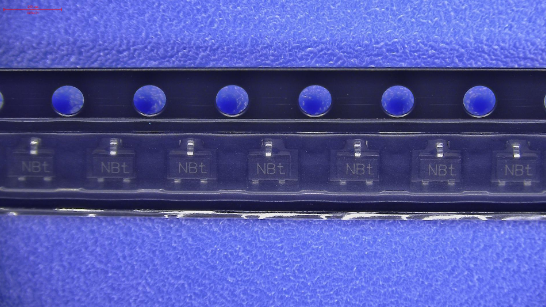

| PACKAGING INFO |
| Packaging Suffix |
X |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
3000 |
| Packaging Document |
Link to Datasheet |
|
| |
| APPLICATIONS |
| • CAN bus protection |
| • Automotive applications |
|
