• 3-A Output Current
|
• Wide-Input Voltage （7V to 36 V) / (15 V to 36 V)
|
• Wide-Output Voltage Adjust (2.5 V to 12.6 V) / (11.85 V to 22 V)
|
• Low power ADC core: 96 mW at 65 MSPS, 104 mW
@ 80 MSPS, 120 mW at 105 MSPS
|
• Differential input with 300 MHz bandwidth
|
• On-chip reference and sample-and-hold amplifier
|
• DNL = ±0.25 LSB
|
• Flexible analog input: 1 V p-p to 2 V p-p range
|
• Offset binary or twos complement data format
|
|
| CATALOG |

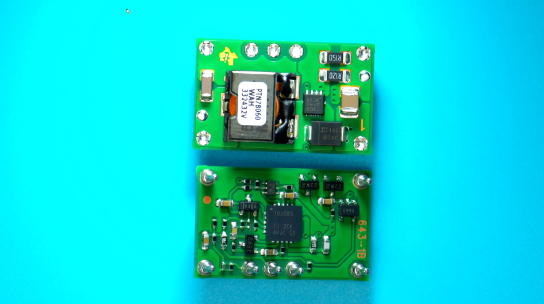

PTN78060WAH COUNTRY OF ORIGIN
|
PTN78060WAH PARAMETRIC INFO
|
PTN78060WAH PACKAGE INFO
|
PTN78060WAH MANUFACTURING INFO
|
PTN78060WAH PACKAGING INFO
|
PTN78060WAH ECAD MODELS
|
PTN78060WAH APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Philippines
|
United States of America
|
Thailand
|
China
|
Israel
|
Mexico
|
|
PARAMETRIC INFO
|
| Isolation |
Non-Isolated |
| Type |
Step Down |
| Number of Outputs |
1 |
| Output Voltage (V) |
2.5 to 12.6 |
| Maximum Output Power (W) |
45 |
| Maximum Output Current (A) |
3 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Switching Regulator |
Yes |
| Minimum Input Voltage (V) |
7 |
| Maximum Input Voltage (V) |
36 |
| Output Type |
Adjustable |
| Efficiency (%) |
94(Typ) |
| Load Regulation |
10mV(Typ) |
| Line Regulation |
10mV(Typ) |
| Switching Frequency (kHz) |
660 |
| Minimum Storage Temperature (°C) |
-55 |
| Maximum Storage Temperature (°C) |
125 |
|
|
PACKAGE INFO
|
| Supplier Package |
DIP Module |
| Basic Package Type |
Through Hole |
| Pin Count |
7 |
| Lead Shape |
Through Hole |
| PCB |
7 |
| Tab |
N/R |
| Pin Pitch (mm) |
3.18|6.35|9.52 |
| Package Length (mm) |
25.27 |
| Package Width (mm) |
15.75 |
| Package Height (mm) |
9(Max) - 0.25(Min) |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
9(Max) |
| Mounting |
Through Hole |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Dual In Line Module |
| Package Family Name |
DIP |
| Jedec |
N/A |
|
|
MANUFACTURING INFO
|
| MSL |
N/R |
| Maximum Reflow Temperature (°C) |
N/R |
| Reflow Solder Time (Sec) |
N/R |
| Number of Reflow Cycle |
N/R |
| Standard |
N/R |
| Maximum Wave Temperature (°C) |
260 |
| Wave Solder Time (Sec) |
5 |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn |
| Under Plating Material |
N/A |
| Terminal Base Material |
N/A |
| Number of Wave Cycles |
N/A |
|
|
PACKAGING INFO
|
| Packaging |
Tray |
| Quantity Of Packaging |
36 |
| Packaging Document |
Link to Datasheet |
|
|

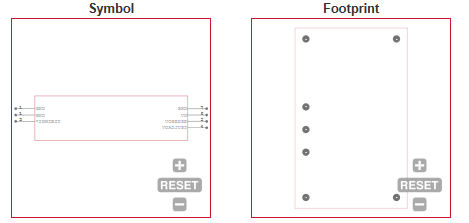

ECAD MODELS
|
|
|
APPLICATIONS
|
• General-Purpose, Industrial Controls,
HVAC Systems
|
| • Test and Measurement，Medical Instrumentation
|
| • AC/DC Adaptors, Vehicles,Marine, and Avionics |
|
|
| |
