• 100 mA output current capability
|
• Built-in bias resistors
|
• Simplifies circuit design
|
• Reduces component count
|
• Reduces pick and place costs
|
• AEC-Q101 qualified
|
|
| CATALOG |
PUMH13,115 COUNTRY OF ORIGIN
|
PUMH13,115 PARAMETRIC INFO
|
PUMH13,115 PACKAGE INFO
|
PUMH13,115 MANUFACTURING INFO
|
PUMH13,115 PACKAGING INFO
|
PUMH13,115 APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Germany
|
China
|
Malaysia
|
Philippines
|
|
PARAMETRIC INFO
|
| Type |
NPN |
| Configuration |
Dual |
| Maximum Collector-Emitter Voltage (V) |
50 |
| Maximum Continuous DC Collector Current (mA) |
100 |
| Maximum Power Dissipation (mW) |
300 |
| Typical Base Emitter Resistor (KOhm) |
47 |
| Operating Junction Temperature (°C) |
150 |
| Maximum Collector-Emitter Saturation Voltage (V) |
0.1@0.25mA@5mA |
| Typical Current Gain Bandwidth (MHz) |
230 |
| Minimum DC Current Gain |
100@10mA@5V |
| Typical Input Resistor (KOhm) |
4.7 |
| Typical Resistor Ratio |
0.1 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
| Minimum Operating Temperature (°C) |
-65 |
| Maximum Operating Temperature (°C) |
150 |
| Supplier Temperature Grade |
Automotive |
|
|
PACKAGE INFO
|
| Supplier Package |
TSSOP |
| Pin Count |
6 |
| PCB |
6 |
| Tab |
N/R |
| Package Length (mm) |
2.2(Max) |
| Package Width (mm) |
1.35(Max) |
| Package Height (mm) |
1(Max) |
| Package Diameter (mm) |
N/R |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Family Name |
SO |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
N/A |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
260 |
| Wave Solder Time (Sec) |
10 |
| Wave Temp. Source |
Link to Datasheet |
| Number of Wave Cycles |
N/R |
|
|

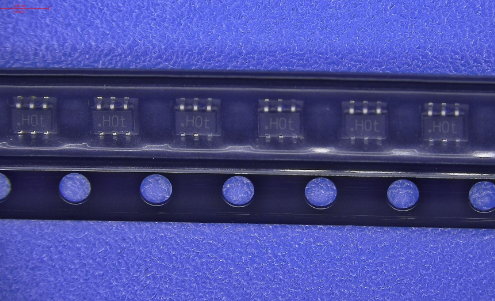

PACKAGING INFO
|
| Packaging Suffix |
115 |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
3000 |
|
|
| APPLICATIONS |
• Low current peripheral driver
|
• Control of IC inputs
|
• Replaces general-purpose transistors in digital applications
|
|
