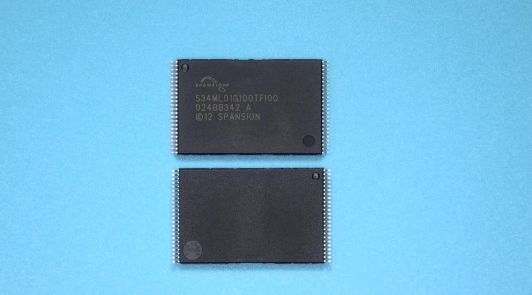

S34ML01G100TFI000 SkyHigh Memory IC FLASH 1G PARALLEL 48TSOP I

label:
2024/12/12 131
S34ML01G100TFI000 SkyHigh Memory IC FLASH 1G PARALLEL 48TSOP I


CATALOG
S34ML01G100TFI000 COUNTRY OF ORIGIN
S34ML01G100TFI000 LIFECYCLE
S34ML01G100TFI000 PARAMETRIC INFO
S34ML01G100TFI000 PACKAGE INFO
S34ML01G100TFI000 MANUFACTURING INFO
S34ML01G100TFI000 PACKAGING INFO
S34ML01G100TFI000 ECAD MODELS


COUNTRY OF ORIGIN
Thailand
Philippines


LIFECYCLE
Obsolete
Mar 04,2020


PARAMETRIC INFO
Density (bit) 1G
Cell Type SLC NAND
Interface Type Parallel
Block Organization Symmetrical
Boot Block No
Timing Type Asynchronous
Architecture Sectored
Programmability Yes
Typical Operating Supply Voltage (V) 3|3.3
Minimum Operating Temperature (°C) -40
Maximum Operating Temperature (°C) 85
Supplier Temperature Grade Industrial
Number of Bits per Word (bit) 8
Number of Words 128M
Maximum Operating Current (mA) 30
Sector Size 128Kbyte x 1024
Program Current (mA) 30
Address Width (bit) 28
Minimum Operating Supply Voltage (V) 2.7
Maximum Operating Supply Voltage (V) 3.6
Maximum Erase Time (s) 0.003/Block
Maximum Programming Time (ms) 0.7
Command Compatible Yes
ECC Support Yes
Erase Suspend/Resume Modes Support No
Simultaneous Read/Write Support No
Support of Common Flash Interface No
Support of Page Mode Yes
Page Size 2Kbyte
Minimum Endurance (Cycles) 100000(Typ)
Density in Bits (bit) 1073741824
Process Technology 4nm


PACKAGE INFO
Supplier Package TSOP-I
Pin Count 48
PCB 48
Tab N/R
Pin Pitch (mm) 0.5
Package Length (mm) 12
Package Width (mm) 18.4
Package Height (mm) 1
Package Diameter (mm) N/R
Seated Plane Height (mm) 1.2(Max)
Mounting Surface Mount
Package Material Plastic
Package Family Name SO
Package Outline Link to Datasheet


MANUFACTURING INFO
Maximum Reflow Temperature (°C) 260
Reflow Solder Time (Sec) 30
Number of Reflow Cycle 3
Standard J-STD-020D
Reflow Temp. Source Link to Datasheet
Maximum Wave Temperature (°C) N/R
Wave Solder Time (Sec) N/R
Number of Wave Cycles N/R


PACKAGING INFO
Packaging Tray
Packaging Document Link to Datasheet


ECAD MODELS
