SF72S006VBDR2500 PARAMETRIC INFO
|
SF72S006VBDR2500 PACKAGE INFO
|
SF72S006VBDR2500 MANUFACTURING INFO
|
SF72S006VBDR2500 PACKAGING INFO
|
SF72S006VBDR2500 ECAD MODELS
|
|
PARAMETRIC INFO
|
Type |
Nano SIM Card |
Gender |
F |
Number of Contacts |
6 |
Termination Method |
Solder |
Maximum Current Rating (A) |
0.5/Contact |
Maximum Voltage Rating |
10V |
Ejector Type |
Push-Push |
Terminal Plating |
Gold Over Nickel |
Contact Material |
Copper Alloy |
Contact Plating |
Gold Over Nickel |
Housing Material |
Glass Filled Liquid Crystal Polymer |
Maximum Contact Resistance (mOhm) |
100 |
Number of Rows |
2 |
Operating Temperature (°C) |
-25 to 85 |
Minimum Operating Temperature (°C) |
-25 |
Maximum Operating Temperature (°C) |
85 |
Mating Cycle (Cycles) |
5000 |
PCB Mounting Side |
Normal |
Maximum Terminal Coplanarity (mm) |
0.08 |
|
|
PACKAGE INFO
|
Terminal Pitch (mm) |
2.54 |
Body Orientation |
Straight |
Mounting |
Surface Mount |
Product Length (mm) |
11.2 |
Product Depth (mm) |
14.35 |
Product Height (mm) |
1.25 |
Length Tolerance (mm) |
±0.1 |
Depth Tolerance (mm) |
±0.1 |
Height Tolerance (mm) |
±0.1 |
Product Weight (g) |
N/A |
|
|
MANUFACTURING INFO
|
MSL |
N/A |
Maximum Reflow Temperature (°C) |
N/A |
Reflow Solder Time (Sec) |
N/A |
Number of Reflow Cycle |
N/A |
Standard |
N/A |
Reflow Temp. Source |
Link to Datasheet |
Maximum Wave Temperature (°C) |
N/R |
Wave Solder Time (Sec) |
N/R |
Wave Temp. Source |
Link to Datasheet |
Lead Finish(Plating) |
Au |
Under Plating Material |
Ni |
Terminal Base Material |
Cu Alloy |
Number of Wave Cycles |
N/R |
|
|
PACKAGING INFO
|
Packaging |
Tape and Reel |
Quantity Of Packaging |
2500 |
|
|

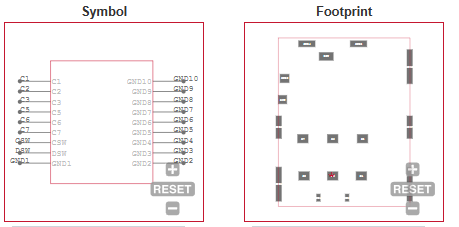

ECAD MODELS
|

|
|
