SHT11 Sensirion SENSOR HUMID/TEMP 5V DTL 3% SMD

label:

2024/05/24 271

• Fully calibrated

• Digital output

• Low power consumption

• Excellent long term stability

• SMD type package – reflow solderable

CATALOG

SHT11 COUNTRY OF ORIGIN

SHT11 PARAMETRIC INFO

SHT11 PACKAGE INFO

SHT11 MANUFACTURING INFO

SHT11 PACKAGING INFO

COUNTRY OF ORIGIN

Switzerland

PARAMETRIC INFO

Function	Humidity/Temperature Sensor
Interface Type	Serial (2-Wire, I2C)
Resolution (bit)	14
Output Type	Digital
Minimum Operating Supply Voltage (V)	2.4
Typical Operating Supply Voltage (V)	5
Maximum Operating Supply Voltage (V)	5.5
Operating Range	0%RH to 100%RH
Operating Temperature (°C)	-40 to 123.8
Maximum Supply Current (uA)	28(Typ)
Accuracy	±0.4°C
Minimum Operating Temperature (°C)	-40
Maximum Operating Temperature (°C)	123.8
Operating Supply Voltage (V)	2.4 to 5.5
Minimum Storage Temperature (°C)	10
Maximum Storage Temperature (°C)	50

Supplier Package	LCC
Pin Count	8
PCB	8
Tab	N/R
Pin Pitch (mm)	1.83
Package Length (mm)	7.47
Package Width (mm)	4.93
Package Height (mm)	2.5
Package Diameter (mm)	N/R
Seated Plane Height (mm)	2.5
Mounting	Surface Mount
Package Material	N/A
Package Family Name	LCC
Jedec	N/A
Package Outline	Link to Datasheet

MANUFACTURING INFO

MSL	1
Maximum Reflow Temperature (°C)	260
Reflow Solder Time (Sec)	40
Number of Reflow Cycle	N/A
Standard	J-STD-020D
Reflow Temp. Source	Link to Datasheet
Maximum Wave Temperature (°C)	N/R
Wave Solder Time (Sec)	N/R
Lead Finish(Plating)	Au
Under Plating Material	Ni
Terminal Base Material	Cu
Number of Wave Cycles	N/R

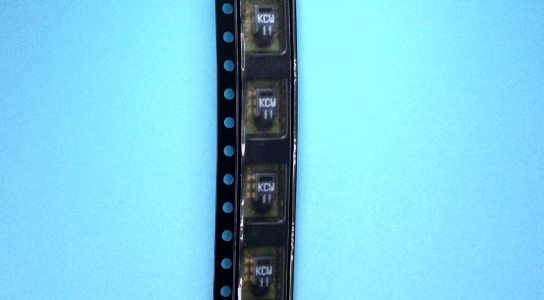

Packaging	Tape and Reel
Quantity Of Packaging	100
