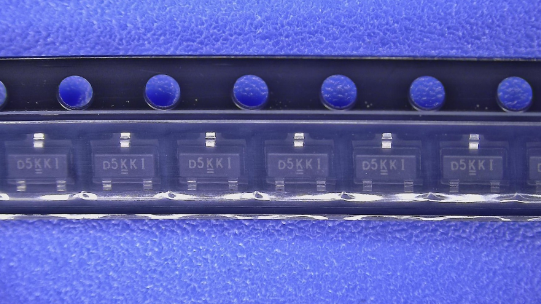

| Channel Type |
P |
| Channel Mode |
Enhancement |
| Configuration |
Single |
| Maximum Drain Source Voltage (V) |
150 |
| Maximum Continuous Drain Current (A) |
0.53 |
| Maximum Gate Source Voltage (V) |
±20 |
| Maximum Drain Source Resistance (mOhm) |
1200@10V |
| Typical Gate Charge @ Vgs (nC) |
7.7@10V |
| Typical Gate Charge @ 10V (nC) |
7.7 |
| Operating Junction Temperature (°C) |
-55 to 150 |
| Maximum Power Dissipation (mW) |
1250 |
| Process Technology |
TrenchFET |
| Minimum Gate Threshold Voltage (V) |
2.5 |
| Category |
Power MOSFET |
| Typical Output Capacitance (pF) |
30 |
| Typical Gate to Drain Charge (nC) |
2.5 |
| Typical Gate to Source Charge (nC) |
1.5 |
| Maximum Junction Ambient Thermal Resistance |
166°C/W |
| Typical Gate Resistance (Ohm) |
9 |
| Maximum Positive Gate Source Voltage (V) |
20 |
| Typical Input Capacitance @ Vds (pF) |
340@25V |
| Typical Reverse Transfer Capacitance @ Vds (pF) |
16@25V |
| Typical Reverse Recovery Charge (nC) |
90 |
| Typical Forward Transconductance (S) |
2.2 |
| Maximum Pulsed Drain Current @ TC=25°C (A) |
1.6 |
| Typical Turn-On Delay Time (ns) |
7 |
| Typical Turn-Off Delay Time (ns) |
16 |
| Typical Fall Time (ns) |
11 |
| Typical Rise Time (ns) |
11 |
| Maximum Gate Source Leakage Current (nA) |
100 |
| Maximum Gate Threshold Voltage (V) |
4.5 |
| Maximum IDSS (uA) |
1 |
| Number of Elements per Chip |
1 |
| Minimum Storage Temperature (°C) |
-55 |
| Maximum Storage Temperature (°C) |
150 |
| Minimum Operating Temperature (°C) |
-55 |
| Maximum Operating Temperature (°C) |
150 |
| Tradename |
TrenchFET® |
