• Junction passivation optimized design passivated anisotropic rectifier technology
|
• TJ = 175 °C capability suitable for high reliability and automotive requirement
|
• Available in unidirectional polarity only
|
• Low leakage current
|
• Low forward voltage drop
|
• High surge capability
|
• Meets ISO7637-2 surge specification (varied by test condition)
|
• Meets MSL level 1, per J-STD-020, LF maximum peak of 245 °C
|
• AEC-Q101 qualified
|
• Material categorization: for definitions of compliance please see www.vishay.com/doc?99912
|
|
| CATALOG |
SM8S18AHE3_A/I COUNTRY OF ORIGIN
|
SM8S18AHE3_A/I PARAMETRIC INFO
|
SM8S18AHE3_A/I PACKAGE INFO
|
SM8S18AHE3_A/I PACKAGING INFO
|

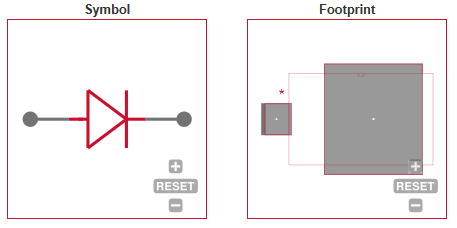

SM8S18AHE3_A/I ECAD MODELS
|
|
COUNTRY OF ORIGIN
|
Taiwan (Province of China)
|
|
PARAMETRIC INFO
|
| Configuration |
Single |
| Direction Type |
Uni-Directional |
| Maximum Reverse Stand-Off Voltage (V) |
18 |
| Minimum Breakdown Voltage (V) |
20 |
| Maximum Clamping Voltage (V) |
29.2 |
| Maximum Reverse Leakage Current (uA) |
10 |
| Maximum Breakdown Voltage (V) |
22.1 |
| Number of Elements per Chip |
1 |
| Maximum Peak Pulse Current (A) |
226 |
| Test Current (mA) |
5 |
| Operating Junction Temperature (°C) |
-55 to 175 |
| Minimum Storage Temperature (°C) |
-55 |
| Maximum Storage Temperature (°C) |
175 |
| Peak Pulse Power Dissipation (W) |
6600 |
| Minimum Operating Temperature (°C) |
-55 |
| Maximum Operating Temperature (°C) |
175 |
| Supplier Temperature Grade |
Automotive |
| Peak Forward Surge Current (A) |
700 |
| Tradename |
PAR® |
|
|
PACKAGE INFO
|
| Supplier Package |
DO-218AB |
| Pin Count |
2 |
| PCB |
1 |
| Tab |
Tab |
| Package Length (mm) |
13.7(Max) |
| Package Width (mm) |
8.7(Max) |
| Package Height (mm) |
5(Max) - 0.4(Min) |
| Package Diameter (mm) |
N/R |
| Mounting |
Surface Mount |
| Package Family Name |
DO |
| Package Outline |
Link to Datasheet |
|
|
PACKAGING INFO
|
| Packaging Suffix |
_A/ |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
750 |
| Packaging Document |
Link to Datasheet |
|
|
ECAD MODELS
|
|
| |
