SMAJ48A-13-F Diodes Incorporated TVS DIODE 48V 77.4V SMA

label:
2024/04/17 245

CATALOG
SMAJ48A-13-F COUNTRY OF ORIGIN
SMAJ48A-13-F PARAMETRIC INFO
SMAJ48A-13-F PACKAGE INFO
SMAJ48A-13-F MANUFACTURING INFO
SMAJ48A-13-F PACKAGING INFO
SMAJ48A-13-F EACD MODELS



COUNTRY OF ORIGIN
China
Taiwan (Province of China)



PARAMETRIC INFO
Configuration Single
Direction Type Uni-Directional
Maximum Reverse Stand-Off Voltage (V) 48
Minimum Breakdown Voltage (V) 53.3
Maximum Clamping Voltage (V) 77.4
Maximum Reverse Leakage Current (uA) 5
Maximum Breakdown Voltage (V) 58.9
Number of Elements per Chip 1
Maximum Peak Pulse Current (A) 5.2
Test Current (mA) 1
Operating Junction Temperature (°C) -55 to 150
Minimum Storage Temperature (°C) -55
Maximum Storage Temperature (°C) 150
Maximum Power Dissipation (mW) 1000
Maximum Forward Voltage (V) 3.5
Peak Pulse Power Dissipation (W) 400
Minimum Operating Temperature (°C) -55
Maximum Operating Temperature (°C) 150
Peak Forward Surge Current (A) 40



PACKAGE INFO
Supplier Package SMA
Basic Package Type Lead-Frame SMT
Pin Count 2
Lead Shape J-Lead
PCB 2
Tab N/R
Pin Pitch (mm) N/R
Package Length (mm) 4.6(Max)
Package Width (mm) 2.92(Max)
Package Height (mm) 2.2(Max)
Package Diameter (mm) N/R
Package Overall Length (mm) 5.59(Max)
Package Overall Width (mm) 2.92(Max)
Package Overall Height (mm) 2.4(Max)
Seated Plane Height (mm) 2.4(Max)
Mounting Surface Mount
Package Weight (g) N/A
Package Material Plastic
Package Description SMD Plastic Package
Package Family Name DO-214-AC
Jedec DO-214AC
Package Outline Link to Datasheet



MANUFACTURING INFO
MSL 1
Maximum Reflow Temperature (°C) 260
Reflow Solder Time (Sec) 30
Number of Reflow Cycle 3
Standard J-STD-020D
Reflow Temp. Source Link to Datasheet
Maximum Wave Temperature (°C) N/R
Wave Solder Time (Sec) N/R
Wave Temp. Source Link to Datasheet
Lead Finish(Plating) Matte Sn annealed
Under Plating Material N/A
Terminal Base Material Cu Alloy
Number of Wave Cycles N/R

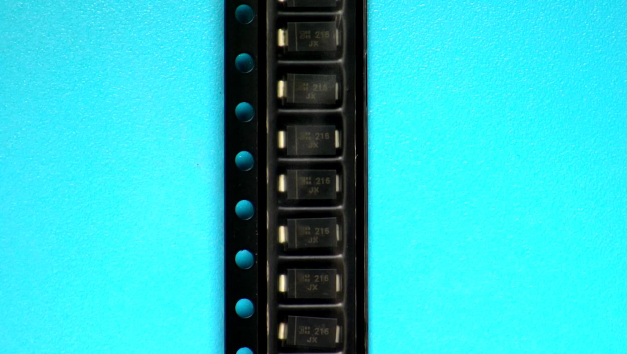

PACKAGING INFO
Packaging Suffix 13
Packaging Tape and Reel
Quantity Of Packaging 5000
Reel Diameter (in) 13
Reel Width (mm) 12.4
Tape Pitch (mm) 4
Tape Width (mm) 12
Feed Hole Pitch (mm) 4
Hole Center to Component Center (mm) 2
Component Orientation Cathode At Sprocket Hole
Packaging Document Link to Datasheet
Tape Type Embossed

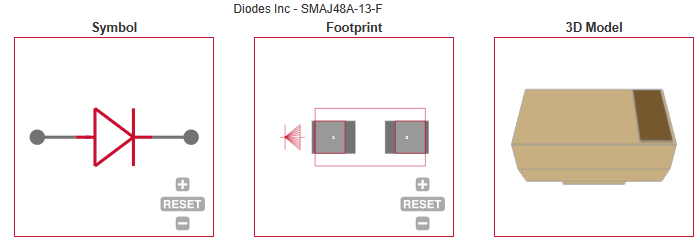

ECAD MODELS
