• Single 3.3-V Supply Voltage
|
• Bus Pins Fault Protection Exceeds ±36 V |
• Bus Pins ESD Protection Exceeds ±16 kV HBM |
• Compatible With ISO 11898-2 |
• GIFT/ICT Compliant |
• Data Rates up to 1 Mbps
|
• Extended –7 V to 12 V Common Mode Range |
• High-Input Impedance Allows for 120 Nodes |
• LVTTL I/Os are 5-V Tolerant |
• Adjustable Driver Transition Times for Improved
Emissions Performance
|
• Unpowered Node Does Not Disturb the Bus |
• Low Current Standby Mode, 200-μA (Typical) |
• SN65HVD233: Loopback Mode |
• SN65HVD234: Ultra Low Current Sleep Mode
– 50-nA Typical Current Consumption |
• SN65HVD235: Autobaud Loopback Mode |
• Thermal Shutdown Protection |
• Power up and Down With Glitch-Free Bus Inputs
and Outputs
– High-Input Impedance With Low VCC
– Monolithic Output During Power Cycling |
|
CATALOG |
SN65HVD234DR COUNTRY OF ORIGIN |
SN65HVD234DR PARAMETRIC INFO |
SN65HVD234DR PACKAGE INFO |
SN65HVD234DR MANUFACTURING INFO |
SN65HVD234DR PACKAGING INFO |
SN65HVD234DR ECAD MODELS |
SN65HVD234DR FUNCTIONAL BLOCK DIAGRAMS |
SN65HVD234DR APPLICATIONS |
|
COUNTRY OF ORIGIN |
Mexico |
|
PARAMETRIC INFO |
Category |
Transceiver |
Maximum Data Rate |
1Mbps |
Standard Supported |
ISO 11898 |
Number of Transceivers |
1 |
Power Down Mode |
Sleep|Standby |
Minimum Operating Temperature (°C) |
-40 |
Maximum Operating Temperature (°C) |
125 |
Maximum Storage Temperature (°C) |
125 |
Typical Operating Supply Voltage (V) |
3.3 |
Minimum Operating Supply Voltage (V) |
3 |
Maximum Operating Supply Voltage (V) |
3.6 |
Maximum Supply Current (mA) |
6 |
|
|
PACKAGE INFO |
Supplier Package |
SOIC |
Basic Package Type |
Lead-Frame SMT |
Pin Count |
8 |
Lead Shape |
Gull-wing |
PCB |
8 |
Tab |
N/R |
Pin Pitch (mm) |
1.27 |
Package Length (mm) |
5(Max) |
Package Width (mm) |
3.98(Max) |
Package Height (mm) |
1.5(Max) |
Package Diameter (mm) |
N/R |
Package Overall Length (mm) |
5(Max) |
Package Overall Width (mm) |
6.19(Max) |
Package Overall Height (mm) |
1.75(Max) |
Seated Plane Height (mm) |
1.75(Max) |
Mounting |
Surface Mount |
Package Weight (g) |
N/A |
Package Material |
Plastic |
Package Description |
Small Outline IC |
Package Family Name |
SO |
Jedec |
MS-012AA |
Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO |
MSL |
1 |
Maximum Reflow Temperature (°C) |
260 |
Reflow Solder Time (Sec) |
30 |
Number of Reflow Cycle |
3 |
Standard |
J-STD-020D |
Reflow Temp. Source |
Link to Datasheet |
Maximum Wave Temperature (°C) |
N/R |
Wave Solder Time (Sec) |
N/R |
Lead Finish(Plating) |
Au |
Under Plating Material |
Pd over Ni |
Terminal Base Material |
Cu Alloy |
Number of Wave Cycles |
N/R |
|
|

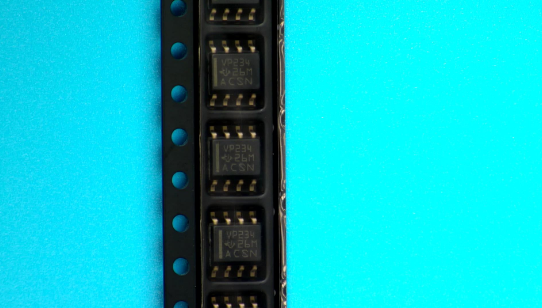

PACKAGING INFO |
Packaging Suffix |
R |
Packaging |
Tape and Reel |
Quantity Of Packaging |
2500 |
Reel Diameter (in) |
13 |
Tape Pitch (mm) |
8 |
Tape Width (mm) |
12 |
Component Orientation |
Q1 |
Packaging Document |
Link to Datasheet |
|
|

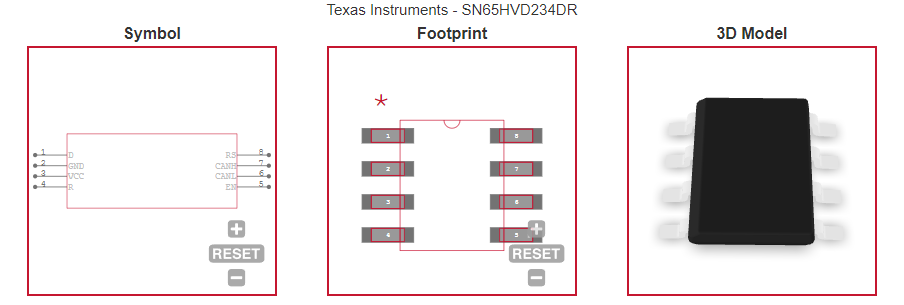

ECAD MODELS |
|
|
FUNCTIONAL BLOCK DIAGRAMS |
|
|
APPLICATIONS |
• Industrial Automation, Control, Sensors, and Drive
Systems |
• Motor and Robotic Control |
• Building and Climate Control (HVAC) |
• Backplane Communication and Control |
• CAN Bus Standards such as CANopen,
DeviceNet, CAN Kingdom, NMEA 2000,
SAE J1939 |
|
