SPC560C50L3C6E0X STMicroelectronics IC MCU 32BIT 512KB FLASH 100LQFP

label:
2023/09/13 506


• High-performance 64 MHz e200z0h CPU
   – 32-bit Power Architecture® technology
   – Up to 60 DMIPs operation
   – Variable length encoding (VLE)
• Memory
   – Up to 512 KB Code Flash with ECC
   – 64 KB Data Flash with ECC
   – Up to 48 KB SRAM with ECC
   – 8-entry memory protection unit (MPU)
• Interrupts
   – 16 priority levels
   – Non-maskable interrupt (NMI)
   – Up to 34 external interrupts incl. 18 wakeup lines
• GPIO: 45(LQFP64), 75(LQFP100), 123(LQFP144)
• Timer units
   – 6-channel 32-bit periodic interrupt timers
   – 4-channel 32-bit system timer module
   – Software watchdog timer
   – Real-time clock timer
• 16-bit counter time-triggered I/Os
   – Up to 56 channels with PWM/MC/IC/OC
   – ADC diagnostic via CTU
• Communications interface
   – Up to 6 FlexCAN interfaces (2.0B active) with 64-message objects each
   – Up to 4 LINFlex/UART
   – 3 DSPI / I2C
• Single 5 V or 3.3 V supply
• 10-bit analog-to-digital converter (ADC) with up to 36 channels
   – Extendable to 64 channels via external multiplexing
   – Individual conversion registers
   – Cross triggering unit (CTU)
• Dedicated diagnostic module for lighting
   – Advanced PWM generation
   – Time-triggered diagnostic
   – PWM-synchronized ADC measurements
• Clock generationClock generation
   – 4 to 16 MHz fast external crystal oscillator (FXOSC)
   – 32 kHz slow external crystal oscillator (SXOSC)
   – 16 MHz fast internal RC oscillator (FIRC)
   – 128 kHz slow internal RC oscillator (SIRC)
   – Software-controlled FMPLL
   – Clock monitor unit (CMU)
• Exhaustive debugging capability
   – Nexus1 on all devices
   – Nexus2+ available on emulation package (LBGA208)
• Low power capabilities
   – Ultra-low power standby with RTC, SRAM and CAN monitoring
   – Fast wakeup schemes
• Operating temp. range up to -40 to 125 °C


CATALOG
SPC560C50L3C6E0X COUNTRY OF ORIGIN
SPC560C50L3C6E0X PARAMETRIC INFO
SPC560C50L3C6E0X PACKAGE INFO
SPC560C50L3C6E0X MANUFACTURING INFO
SPC560C50L3C6E0X PACKAGING INFO  


COUNTRY OF ORIGIN
Malta


PARAMETRIC INFO
Data Bus Width (bit) 32
Family Name MPC56xx
Device Core e200z0h
Instruction Set Architecture RISC
Maximum Clock Rate (MHz) 64
Program Memory Type Flash
Program Memory Size 512KB
RAM Size 48KB
Data Memory Size 64KB
Maximum CPU Frequency (MHz) 64
Number of Programmable I/Os 79
Number of Timers 2
ADC Channels 28
ADC Resolution (bit) 10
Core Architecture e200
Number of ADCs Single
Watchdog 1
Parallel Master Port No
Real Time Clock Yes
Special Features CAN Controller
Interface Type CAN/I2C/SCI/SPI
Programmability Yes
SPI 3
I2C 1
I2S 0
UART 0
USART 0
CAN 6
USB 0
Ethernet 0
Minimum Operating Supply Voltage (V) 3|4.5
Typical Operating Supply Voltage (V) 3.3|5
Maximum Operating Supply Voltage (V) 3.6|5.5
Minimum Operating Temperature (°C) -40
Maximum Operating Temperature (°C) 125
Temperature Flag Opr
Supplier Temperature Grade Automotive
Operating Supply Voltage (V) 3.3|5
Maximum Storage Temperature (°C) 150
Minimum Storage Temperature (°C) -55


PACKAGE INFO
Supplier Package LQFP
Basic Package Type Lead-Frame SMT
Pin Count 100
Lead Shape Gull-wing
PCB 100
Tab N/R
Pin Pitch (mm) 0.5
Package Length (mm) 14
Package Width (mm) 14
Package Height (mm) 1.4
Package Diameter (mm) N/R
Package Overall Length (mm) 16
Package Overall Width (mm) 16
Package Overall Height (mm) 1.6(Max)
Seated Plane Height (mm) 1.6(Max)
Mounting Surface Mount
Package Weight (g) N/A
Package Material Plastic
Package Description Low Profile Quad Flat Package
Package Family Name QFP
Jedec MS-026BED
Package Outline Link to Datasheet


MANUFACTURING INFO
MSL 3
Maximum Reflow Temperature (°C) 260
Number of Reflow Cycle 3
Reflow Temp. Source Link to Datasheet
Maximum Wave Temperature (°C) N/R
Wave Solder Time (Sec) N/R
Wave Temp. Source Link to Datasheet
Lead Finish(Plating) Matte Sn annealed
Under Plating Material Ag
Terminal Base Material Cu Alloy
Shelf Life Period 2 Years

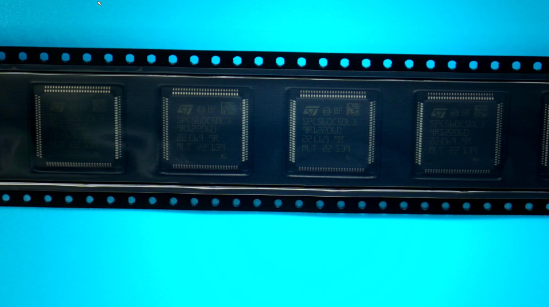

PACKAGING INFO
Packaging Suffix X
Packaging Tape and Reel
Quantity Of Packaging 1000
Packaging Document Link to Datasheet
