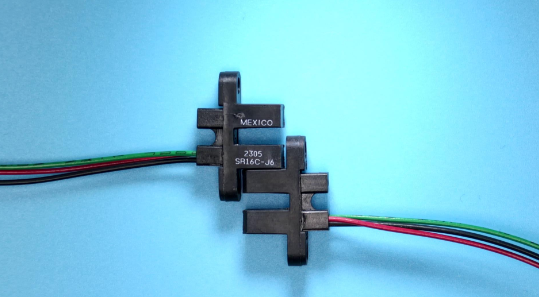

SR16C-J6 Honeywell SENSOR HALL DIGITAL WIRE LEADS

label:

2024/12/18 107

SR16C-J6 Honeywell SENSOR HALL DIGITAL WIRE LEADS

CATALOG

SR16C-J6 COUNTRY OF ORIGIN

SR16C-J6 PARAMETRIC INFO

SR16C-J6 PACKAGE INFO

SR16C-J6 MANUFACTURING INFO

COUNTRY OF ORIGIN

China

Mexico

PARAMETRIC INFO

Minimum Operating Supply Voltage (V)	3.8
Typical Operating Supply Voltage (V)	5\|9\|12\|15\|18\|24
Maximum Operating Supply Voltage (V)	30
Maximum Output Current (mA)	20
Typical Output Fall Time (us)	1.5(Max)
Minimum Operating Temperature (°C)	-20
Maximum Operating Temperature (°C)	85
Output Driver	Open Collector
Operating Supply Voltage (V)	5\|9\|12\|15\|18\|24

Supplier Package	N/A
Pin Count	3
PCB	3
Tab	N/R
Package Length (mm)	24.6
Package Width (mm)	5.58
Package Height (mm)	11.9
Package Diameter (mm)	N/R
Mounting	Screw
Package Weight (g)	N/A
Package Description	N/A
Package Family Name	N/A
Jedec	N/A
Package Outline	Link to Datasheet

MANUFACTURING INFO

MSL	N/R
Maximum Reflow Temperature (°C)	N/R
Reflow Solder Time (Sec)	N/R
Reflow Temp. Source	Link to Datasheet
Maximum Wave Temperature (°C)	N/A
Wave Solder Time (Sec)	N/A
Wave Temp. Source	Link to Datasheet
Lead Finish(Plating)	N/A
Under Plating Material	N/A
Terminal Base Material	N/A
