• High-efficiency 32-bit CPU (TMS320C28x) – 90 MHz (11.11-ns cycle time) – 16 × 16 and 32 × 32 Multiply and Accumulate (MAC) operations – 16 × 16 dual MAC – Harvard bus architecture – Atomic operations – Fast interrupt response and processing – Unified memory programming model – Code-efficient (in C/C++ and Assembly) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
• Floating-Point Unit (FPU) – Native single-precision floating-point operations |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
• Programmable Control Law Accelerator (CLA) – 32-bit floating-point math accelerator – Executes code independently of the main CPU |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
• Viterbi, Complex Math, CRC Unit (VCU) – Extends C28x instruction set to support complex multiply, Viterbi operations, and Cyclic Redundency Check (CRC) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
• Embedded memory – Up to 256KB of flash – Up to 100KB of RAM – 2KB of One-Time Programmable (OTP) ROM |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
• 6-channel Direct Memory Access (DMA) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
• Low device and system cost – Single 3.3-V supply – No power sequencing requirement – Integrated power-on reset and brownout reset – Low-power operating modes – No analog support pin |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
• Endianness: Little endian | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
• JTAG boundary scan support – IEEE Standard 1149.1-1990 Standard Test Access Port and Boundary Scan Architecture |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
• Clocking – Two internal zero-pin oscillators – On-chip crystal oscillator/external clock input – Watchdog timer module – Missing clock detection circuitry |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
• Peripheral Interrupt Expansion (PIE) block that supports all peripheral interrupts | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
• Three 32-bit CPU timers | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
• Advanced control peripherals | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
• Up to 8 Enhanced Pulse-Width Modulator (ePWM)
modules – 16 PWM channels total (8 HRPWM-capable) – Independent 16-bit timer in each module |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
• Three input Enhanced Capture (eCAP) modules | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
• Up to 4 High-Resolution Capture (HRCAP) modules | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
• Up to 2 Enhanced Quadrature Encoder Pulse (eQEP) modules | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
• 12-bit Analog-to-Digital Converter (ADC), dual
Sample-and-Hold (S/H) – Up to 3.46 MSPS – Up to 16 channels |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
• On-chip temperature sensor | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
• 128-bit security key and lock – Protects secure memory blocks – Prevents reverse-engineering of firmware |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
• Serial port peripherals – Two Serial Communications Interface (SCI) [UART] modules – Two Serial Peripheral Interface (SPI) modules – One Inter-Integrated-Circuit (I2C) bus – One Multichannel Buffered Serial Port (McBSP) bus – One Enhanced Controller Area Network (eCAN) – Universal Serial Bus (USB) 2.0 (see Device Comparison for availability) • Full-speed device mode • Full-speed or low-speed host mode |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
• Up to 54 individually programmable, multiplexed General-Purpose Input/Output (GPIO) pins with input filtering | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
• Advanced debug features – Analysis and breakpoint functions – Real-time debug through hardware |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
• Package options – 80-pin PFP and 100-pin PZP PowerPAD™ Thermally Enhanced Thin Quad Flatpacks (HTQFPs) – 80-pin PN and 100-pin PZ Low-Profile Quad Flatpacks (LQFPs) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
• Temperature options – T: –40°C to 105°C – S: –40°C to 125°C – Q: –40°C to 125°C (AEC Q100 qualification for automotive applications) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
CATALOG | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

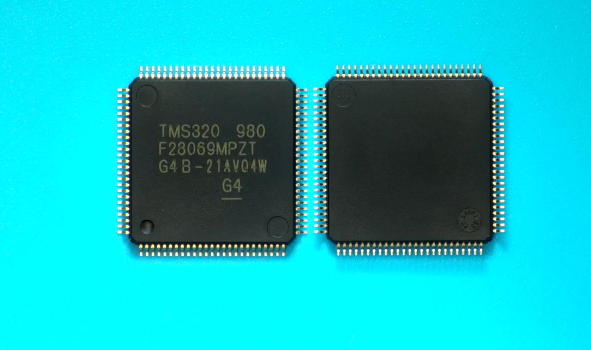

TMS320F28069MPZT COUNTRY OF ORIGIN | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
TMS320F28069MPZT PARAMETRIC INFO | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
TMS320F28069MPZT PACKAGE INFO | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
TMS320F28069MPZT MANUFACTURING INFO | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
TMS320F28069MPZT PACKAGING INFO | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
TMS320F28069MPZT ECAD MODELS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
TMS320F28069MPZT FUNCTIONAL BLOCK DIAGRAM | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
TMS320F28069MPZT APPLICATIONS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
COUNTRY OF ORIGIN | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Philippines | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
PARAMETRIC INFO | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
PACKAGE INFO | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
MANUFACTURING INFO | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
PACKAGING INFO | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

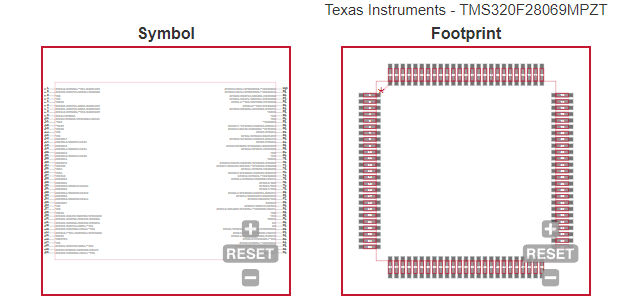

ECAD MODELS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
![]() |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

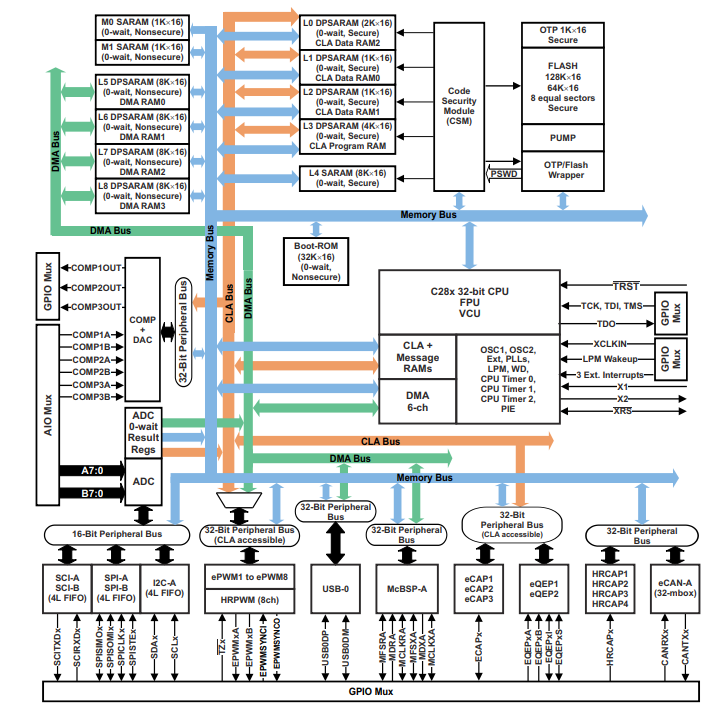

FUNCTIONAL BLOCK DIAGRAM | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
![]() |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
APPLICATIONS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
• Air conditioner outdoor unit | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
• Door operator drive control | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
• Inverter & motor control | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
• On-board (OBC) & wireless charger | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
• Automated sorting equipment | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
• CNC control | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
• Textile machine | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
• Welding machine | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
• EV charging station power module | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
• Wireless vehicle charging module | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
• Energy storage power conversion system (PCS) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
• Central inverter | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
• Micro inverter | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
• Solar power optimizer | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
• String inverter | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
• AC drive control module | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
• AC drive power stage module | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
• Linear motor power stage | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
• Servo drive control module | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
• Servo drive power stage module | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
• AC-input BLDC motor drive | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
• DC-input BLDC motor drive | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
• Industrial AC-DC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
• Three phase UPS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
