• Input Voltage Range: –3 V to –36 V
|
• Noise: – 16 μVRMS (10 Hz to 100 kHz)
|
• Power-Supply Ripple Rejection:– 72 dB (10 kHz)
|
| • Adjustable Output: –1.18 V to –33 V
|
| • Maximum Output Current: 1 A |
| • Stable With Ceramic Capacitors ≥ 10 μF |
| • Built-In Current-Limit and Thermal Shutdown Protection |
| • Available in an External Heatsink-Capable, High Thermal Performance TO-220 Package |
| • Operating Temperature Range:–40°C to 125°C |
|
| CATALOG |
| TPS7A3301RGWR COUNTRY OF ORIGIN |
TPS7A3301RGWR PARAMETRIC INFO
|
TPS7A3301RGWR PACKAGE INFO
|
TPS7A3301RGWR MANUFACTURING INFO
|
TPS7A3301RGWR PACKAGING INFO
|
TPS7A3301RGWR ECAD MODELS
|
| TPS7A3301RGWR APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| Philippines |
|
PARAMETRIC INFO
|
| type |
LDO |
| Number of Outputs |
1 |
| Maximum Output Current (A) |
1 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Output Type |
Adjustable |
| Output Voltage Range (V) |
<1.8 |
| Junction to ambient |
33.7°C/W |
| Junction to Case |
30.4°C/W |
| Polarity |
Negative |
| Special Features |
Current Limit|Thermal Shutdown Protection |
| Process Technology |
Bipolar |
| Load Regulation |
0.4%Vo(Typ) |
| Line Regulation |
0.14%Vo(Typ) |
| Maximum Dropout Voltage @ Current (V) |
0.8@1A |
| Minimum Input Voltage (V) |
-36 |
| Maximum Input Voltage (V) |
-3 |
| Output Voltage (V) |
-1.18 to -33 |
| Typical Quiescent Current (mA) |
0.21 |
| Typical Dropout Voltage @ Current (V) |
0.29@500mA|0.325@1A |
| Reference Voltage (V) |
-1.157 |
| Accuracy (%) |
±1.5 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
| Typical Ground Current @ Full Load (mA) |
5 |
| Typical PSRR (dB) |
72 |
| Typical Output Capacitance (uF) |
10(Min) |
| Typical Output Noise Voltage (uVrms) |
16 |
| Output Capacitor Type |
Ceramic |
|
|
PACKAGE INFO
|
| Supplier packaging |
VQF |
| Basic package type |
Non-Lead-Frame SMT |
| Number of pins |
20 |
| Pin shape |
No Lead |
| PCB |
20 |
| ears |
N/R |
| Pin spacing (mm) |
0.65 |
| Package length (mm) |
5.15(Max) |
| Package width (mm) |
5.15(Max) |
| Package height (mm) |
0.95(Max) |
| Package diameter (mm) |
N/R |
| Package Overall Length (mm) |
5.15(Max) |
| Package Overall Width (mm) |
5.15(Max) |
| Package Overall Height (mm) |
1(Max) |
| Mounting surface height (mm) |
1(Max) |
| Install |
Surface Mount |
| Package weight (g) |
not applicable |
| Packaging materials |
Plastic |
| package instruction |
Very Thin Quad Flat No Lead Package, Exposed Pad |
| Package series name |
QFN |
| JEDEC |
MO-220 |
|
|
MANUFACTURING INFO
|
| MSL |
2 |
| Maximum reflow temperature (°C) |
260 |
| Reflow soldering time (seconds) |
30 |
| Number of reflow cycles |
3 |
| standard |
J-STD-020D |
| Reflow temperature source |
Link to datasheet |
| Maximum wave soldering temperature (°C) |
N/R |
| Wave soldering time (seconds) |
N/R |
| Lead Finish(Plating) |
Au |
| Plating materials |
Pd over Ni |
| Terminal Base Material |
Cu Alloy |
| Shelf Life Period |
2 Years |
| Shelf Life Condition |
not applicable |
| Number of Wave Cycles |
N/R |
|
|

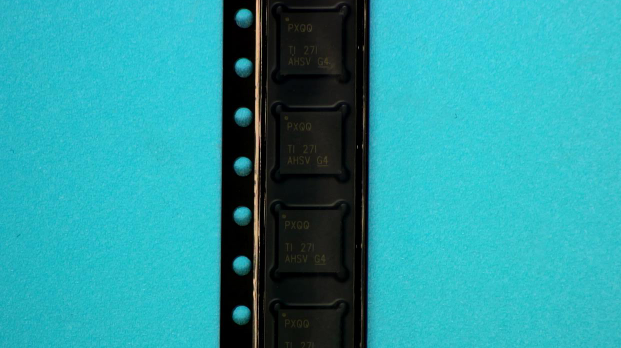

PACKAGING INFO
|
| Packaging Suffix |
R |
| Package |
Tape and reel packaging |
| Packing quantity |
3000 |
| Reel Diameter (in) |
13 |
| Reel Width (mm) |
12.4 |
| Tape Pitch (mm) |
8 |
| Tape Width (mm) |
12 |
| Component Orientation |
Q2 |
| packaging type file |
Link to datasheet |
|
|

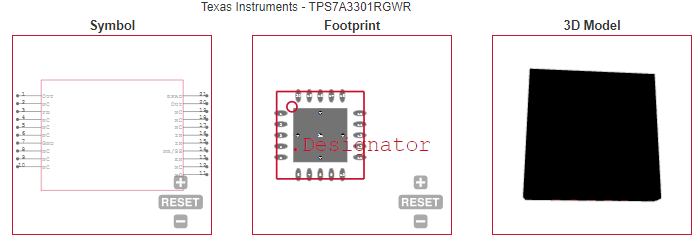

ECAD MODELS
|
|
|
APPLICATIONS
|
• Supply Rails for Operational Amplifiers, DACs ADCs, and Other High-Precision Analog Circuitry
|
| • Audio |
| • Post DC-DC Converter Regulation and Ripple Filtering |
| • Test and Measurement |
| • Medica |
| • Industrial Instrumentation |
• Base Stations and Telecom Infrastructure
|
• 12-V and 24-V Industrial Buses
|
| |
| |
