TPSMB18CA Littelfuse TVS DIODE 15.3VWM 25.5VC DO214AA

label:
2025/03/14 42
TPSMB18CA Littelfuse TVS DIODE 15.3VWM 25.5VC DO214AA


• High-reliability application andautomotive grade AEC-Q101qualified
• 600 W PPPM peak pulse power capability at 10/1000 µs waveform, repetition rate (duty cycles):0.01 %
• Surface mount component to optimize board space
• Low profile package
• Typical failure mode is short from over-specified voltage or current


CATALOG
TPSMB18CA COUNTRY OF ORIGIN
TPSMB18CA PARAMETRIC INFO
TPSMB18CA PACKAGE INFO
TPSMB18CA MANUFACTURING INFO
TPSMB18CA PACKAGING INFO
TPSMB18CA ECAD MODELS


COUNTRY OF ORIGIN
China


PARAMETRIC INFO
Configuration Single
Direction Type Bi-Directional
Maximum Reverse Stand-Off Voltage (V) 15.3
Minimum Breakdown Voltage (V) 17.1
Maximum Clamping Voltage (V) 25.5
Maximum Reverse Leakage Current (uA) 1
Maximum Breakdown Voltage (V) 18.9
Number of Elements per Chip 1
Maximum Peak Pulse Current (A) 24.2
Test Current (mA) 1
Operating Junction Temperature (°C) -65 to 175
Minimum Storage Temperature (°C) -65
Maximum Storage Temperature (°C) 175
Maximum Power Dissipation (mW) 5000
Peak Pulse Power Dissipation (W) 600
Minimum Operating Temperature (°C) -65
Maximum Operating Temperature (°C) 175
Supplier Temperature Grade Automotive
Peak Forward Surge Current (A) 100


PACKAGE INFO
Supplier Package SMB
Basic Package Type Lead-Frame SMT
Pin Count 2
Lead Shape J-Lead
PCB 2
Tab N/R
Pin Pitch (mm) N/R
Package Length (mm) 4.57(Max)
Package Width (mm) 3.94(Max)
Package Height (mm) 2.24(Max)
Package Diameter (mm) N/R
Seated Plane Height (mm) 2.44(Max)
Mounting Surface Mount
Package Material Plastic
Package Description SMD Plastic Package
Package Family Name DO
Jedec DO-214AA
Package Outline Link to Datasheet


MANUFACTURING INFO
MSL 1
Maximum Reflow Temperature (°C) 260
Reflow Solder Time (Sec) 30
Reflow Temp. Source Link to Datasheet
Maximum Wave Temperature (°C) N/R
Wave Solder Time (Sec) N/R
Wave Temp. Source Link to Datasheet
Lead Finish(Plating) Matte Sn
Under Plating Material N/A
Terminal Base Material N/A


PACKAGING INFO

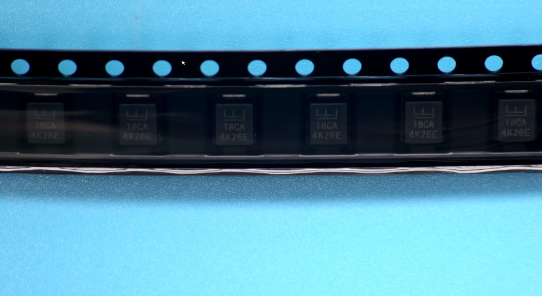

Packaging Tape and Reel
Quantity Of Packaging 3000
