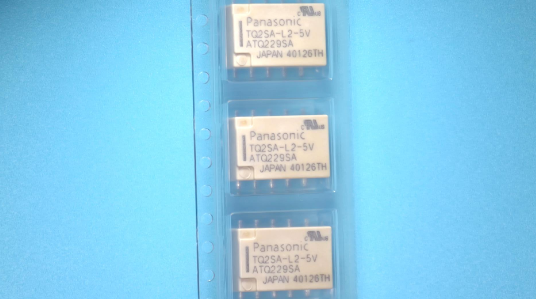

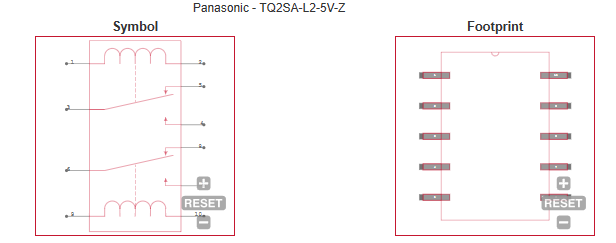

TQ2SA-L2-5V-Z Panasonic Industrial Devices RELAY TELECOM DPDT 2A 125V

2024/12/27 82

• 3 types of terminal shapes:PC board terminal ( standard/self-clinching terminal )Surface-mount terminal

• Confort to FCC Part68:Surge withstand voltage 1,500 V ( between open contacts )

• M.B.B. contact available

• Surface-mount terminal conform to JIS C0806 standard

CATALOG

Japan

DC Coil Voltage (V)	5
Coil Current (mA)	28.1
Contact Arrangement	DPDT
Contact Form	2 Form C
Contact Material	Silver Nickel/Gold Clad
Maximum AC Switching Voltage (V)	125
Maximum DC Switching Voltage (V)	220
Maximum Switching Current (A)	2
Maximum Switching Power	30W\|62.5VA
Coil Resistance (Ohm)	178
Maximum Pick-Up Voltage	3.75VDC
Minimum Dropout Voltage	3.75VDC
Relay Construction	Latching Double Coil
Operate Time (ms)	4
Release Time (ms)	4
Seal	Sealed
Maximum Contact Resistance (mOhm)	75
Insulation Resistance (MOhm)	1000
IP Rating	IP67
Electrical Life (Operations)	100000
Mechanical Life (Operations)	100000000
Minimum Operating Temperature (°C)	-40
Maximum Operating Temperature (°C)	85

MSL	4
Maximum Reflow Temperature (°C)	250
Reflow Solder Time (Sec)	5
Maximum Wave Temperature (°C)	N/R
Wave Solder Time (Sec)	N/R
Lead Finish(Plating)	SnAgCu
Under Plating Material	N/A
Terminal Base Material	Cu Alloy
Shelf Life Period	72 Hours

• Telecommunications and measurement equipment

• Telephone related equipment

• OA equipment

• Industrial machines
