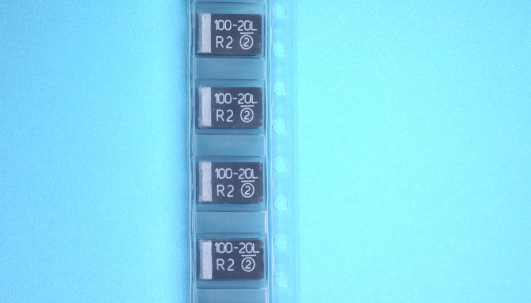

• Low ESR
|
• Surge current tested:cases A and B - selected ratings cases C, D, E, and W - all ratings
|
• Qualified to EIA-717
|
• Molded case available in seven case codes
|
• High ripple current carrying capability
|
• Terminations: 100 % matte tin standard,tin / lead available
|
• Compatible with “high volume” automatic pick and place equipment
|
• Compliant terminations
|
• Moisture sensitivity level 1
|
|
| CATALOG |
TR3D107K020C0080 COUNTRY OF ORIGIN
|
TR3D107K020C0080 PARAMETRIC INFO
|
TR3D107K020C0080 PACKAGE INFO
|
TR3D107K020C0080 MANUFACTURING INFO
|
TR3D107K020C0080 PACKAGING INFO
|
TR3D107K020C0080 APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Israel
|
China
|
|
PARAMETRIC INFO
|
| Capacitance Value |
100uF |
| Voltage |
20VDC |
| Tolerance |
10% |
| Ripple Current (mA) |
1370 |
| Case Code |
D |
| Leakage Current (uA) |
20 |
| Equivalent Series Resistance (Ohm) |
0.08 |
| Case Style |
Molded |
| Fail Safe with Built-in Fuse |
No |
| High Shock and Vibrating |
Yes |
| Temperature Range @ Derated Voltage (°C) |
85 to 125 |
| Polarity |
Polar |
| Construction |
Flat |
| Operating Temperature (°C) |
-55 to 125 |
| Maximum Operating Temperature (°C) |
125 |
| Minimum Operating Temperature (°C) |
-55 |
| Equivalent Series Resistance Type |
Low |
| DC Rated Voltage (VDC) |
20 |
| Negative Capacitance Tolerance (%) |
-10 |
| Positive Capacitance Tolerance (%) |
10 |
| Surge Test Option |
No Surge |
| Maximum Dissipation Factor (%) |
8 |
| Tradename |
TANTAMOUNT™ |
| Type |
Solid |
| Package Region |
World Wide |
| Special Features |
Molded Case |
| Test Frequency (Hz) |
120 |
| Fixed/Variable |
Fixed |
|
|
PACKAGE INFO
|
| Package/Case |
7343-31 |
| Mounting |
Surface Mount |
| Termination Style |
Inward L |
| Terminal Pitch (mm) |
N/R |
| Product Length (mm) |
7.3 |
| Product Depth (mm) |
4.3 |
| Product Height (mm) |
2.8 |
| Product Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
N/R |
| Product Weight (g) |
N/A |
| Length Tolerance (mm) |
±0.3 |
| Depth Tolerance (mm) |
±0.3 |
| Height Tolerance (mm) |
±0.3 |
| Diameter Tolerance (mm) |
N/R |
| Number of Terminals |
2 |
| Size (mm) |
7.3 X 4.3 X 2.8 |
| Maximum Product Length (mm) |
7.6 |
| Maximum Product Depth (mm) |
4.6 |
| Maximum Product Height (mm) |
3.1 |
|
|
| MANUFACTURING INFO |
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
250 |
| Reflow Solder Time (Sec) |
30 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
250 to 260 |
| Wave Solder Time (Sec) |
3 to 5 |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn |
| Under Plating Material |
Ni |
| Terminal Base Material |
Alloy 42 |
| Shelf Life Period |
3 to 4 Years |
|
|
| PACKAGING INFO |
| Packaging Suffix |
C |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
500 |
| Reel Diameter (in) |
7 |
| Tape Pitch (mm) |
8 |
| Tape Width (mm) |
12 |
| Feed Hole Pitch (mm) |
4 |
| Hole Center to Component Center (mm) |
2 |
| Component Orientation |
Anode Opposing Sprocket Hole |
| Packaging Document |
Link to Datasheet |
| Tape Material |
Plastic |
|
|
| APPLICATIONS |
• Industrial
|
| • Telecom infrastructure |
| • Consumer |
| • Computer |
| • General purpose |
| |
