• All welded construction of the Power Metal Strip® resistors are ideal for all types of current sensing, voltage division and pulse applications
|
• Proprietary processing technique produces extremely low resistance values (down to 0.0005 Ω)
|
• Sulfur resistance by construction that is unaffected by high sulfur environments
|
• Very low inductance 0.5 nH to 5 nH
|
• Low thermal EMF (< 3 μV/°C)
|
|
| CATALOG |
WSL2010R0500FEA18 COUNTRY OF ORIGIN
|
WSL2010R0500FEA18 PARAMETRIC INFO
|
WSL2010R0500FEA18 PACKAGE INFO
|
WSL2010R0500FEA18 MANUFACTURING INFO
|
WSL2010R0500FEA18 PACKAGING INFO
|
WSL2010R0500FEA18 ECAD MODELS
|
|
COUNTRY OF ORIGIN
|
China
|
Mexico
|
Israel
|
United States of America
|
|
PARAMETRIC INFO
|
| Resistance Value (Ohm) |
50m |
| Temperature Coefficient (ppm/°C) |
±75 |
| Power Rating (W) |
1 |
| Tolerance |
1% |
| Negative Resistance Tolerance (%) |
-1 |
| Positive Resistance Tolerance (%) |
1 |
| Technology |
Metal Strip |
| Package Shape |
Rectangular |
| Case Style |
Silicone |
| Maximum Terminal Width (mm) |
2.79 |
| Operating Temperature (°C) |
-65 to 170 |
| Minimum Operating Temperature (°C) |
-65 |
| Maximum Operating Temperature (°C) |
170 |
| Temperature Range @ Derated Power (°C) |
70 to 170 |
| Minimum Storage Temperature (°C) |
-65 |
| Current Sensing |
Yes |
| Fail Safe Fusible Resistor |
No |
| Anti-Surge |
No |
| Anti-Sulfurated |
Yes |
| Pulse Withstand |
Yes |
| Special Features |
High Power |
| Tradename |
Power Metal Strip® |
|
|
PACKAGE INFO
|
| Case Size |
2010 |
| Package/Case |
2010 |
| Mounting |
Surface Mount |
| Package Type |
SMD |
| Termination Style |
Pad |
| Product Length (mm) |
5.08 |
| Product Depth (mm) |
2.54 |
| Product Height (mm) |
0.64 |
| Product Diameter (mm) |
N/R |
| Length Tolerance (mm) |
±0.25 |
| Depth Tolerance (mm) |
±0.25 |
| Height Tolerance (mm) |
±0.25 |
| Diameter Tolerance (mm) |
N/R |
| Maximum Product Length (mm) |
5.33 |
| Maximum Product Depth (mm) |
2.79 |
| Maximum Product Height (mm) |
0.89 |
| Product Weight (g) |
0.0389 |
| Terminal Pitch (mm) |
N/R |
| Number of Terminals |
2 |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
10 |
| Number of Reflow Cycle |
3 |
| Standard |
N/A |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
260 |
| Wave Solder Time (Sec) |
5 |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn |
| Under Plating Material |
Ni |
| Terminal Base Material |
Cu |
| Number of Wave Cycles |
N/A |
|
| |

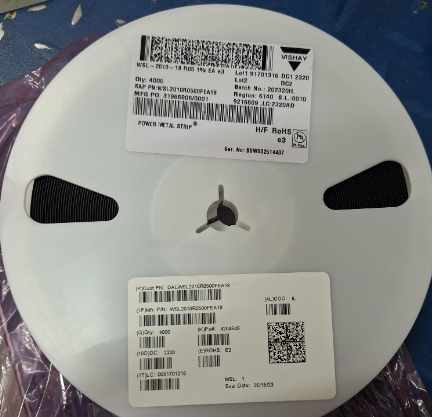

| PACKAGING INFO |
| Packaging Suffix |
EA |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
4000 |
| Reel Diameter (in) |
7 |
| Reel Width (mm) |
12.4 |
| Tape Pitch (mm) |
4 |
| Tape Width (mm) |
12 |
| Feed Hole Pitch (mm) |
4 |
| Hole Center to Component Center (mm) |
2 |
| Packaging Document |
Link to Datasheet |
| Tape Material |
Plastic |
| Tape Type |
Embossed |
|
| |

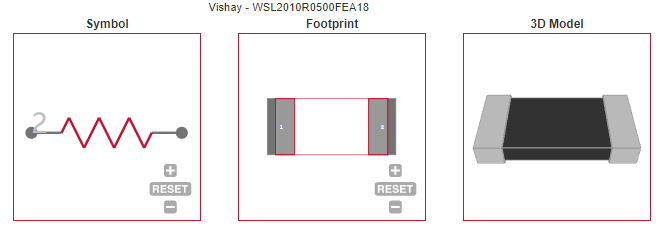

| ECAD MODELS |
 |
| |
